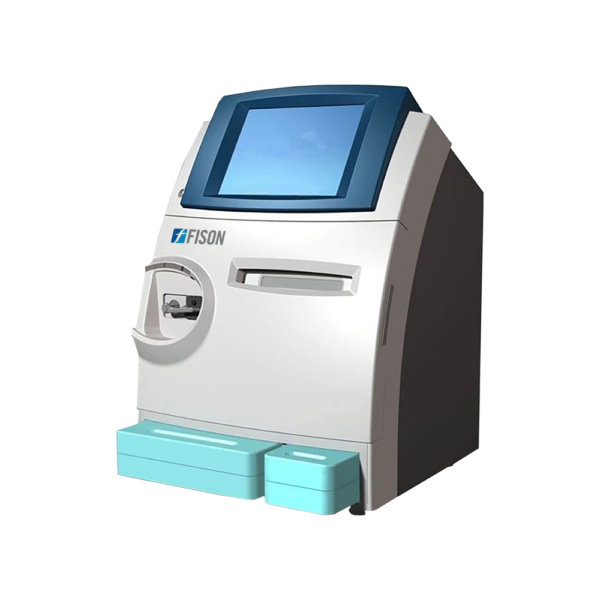

Blood gas analyzer FM-BGA-A100 requires a sample volume of 120 µl for whole blood and 50 µl for capillary blood, ensuring flexibility in sample types. It supports multiple barcode types, enhancing versatility. Operating within a temperature range of 15° C to 30°C. Enhanced with a seamless data input and an infrared human detector. The built-in thermal printer provides immediate printouts of results.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Blood gas analyzer is ideal for healthcare, biotechnology, veterinary medicine, and sports science.
| Sample | Whole blood, Serum, Plasma, Dialysate, CSF |
| Sample Volume | 120 µl whole blood , 50 µl capillary blood |
| Analysis Time | < 90s |
| Test Parameter | pO2, pCO2, pH, K, HCT.B.P, Na+ , Cl– , Ca++ |
| Operating Temperature | 15 to 30°C |
| Storage Environment | 5 to 45°C |
| Input Variable | Patient temperature, Hemoglobin, FiO2 , Barometric Pressure |
| Measured Factor | Hydrogen ion activity (pH): 6.000 to 9.000 pH Partial pressure (pCO2): 1.607 to 26.67 Kpa, 8.0 to 200.0 mmHg (PO2): 0 to 106.7 kPa,0 to 800.0 mmHg Potassium ion (K): 0.5 to 15.0 mmol/L Sodium ion (Na+): 20.0 to 200.0 mmol/L Chloride ion (Cl–): 20.0 to 200.0 mmol/L Ionized calcium (Ca++) : 0.3 to 5.0 mmol/L Hct: 12.0 to 65.0% B.P. : 500 to 800 mmol/L |
| Derived Factors | pH (CH)pCO2&, pO2&,K ,Na+ ,Cl– ,Ca++ ,Hct ,B.P |
| Calibration | Automatic, programmable 1-point and 2-point calibration |
| Data Storage | > 5000 result |
| Display | 10.4 inches TFT touch screen |
| Printer | Built-in thermal printer |
| Bar Code Reader | Multiple types barcode type |
| Interface | Serial line RS-232, TCP/IP interface, USB port, Integrated Bar-Code Reader |
| Battery | 24 Nickel-metal hydride battery, 3.0 Ah |
| Power Supply | 100 to 240 V, 50/60 Hz |
| Reagent Dimension (W × D × H ) | 586 × 460 × 380 mm |
| Packaging Dimension (W × D × H ) | 920 × 650 × 610mm |
| Gross Weight ( Reagent ) | 9.7 kg |
| Gross Weight (Main Instrument ) | 52.8 kg |
