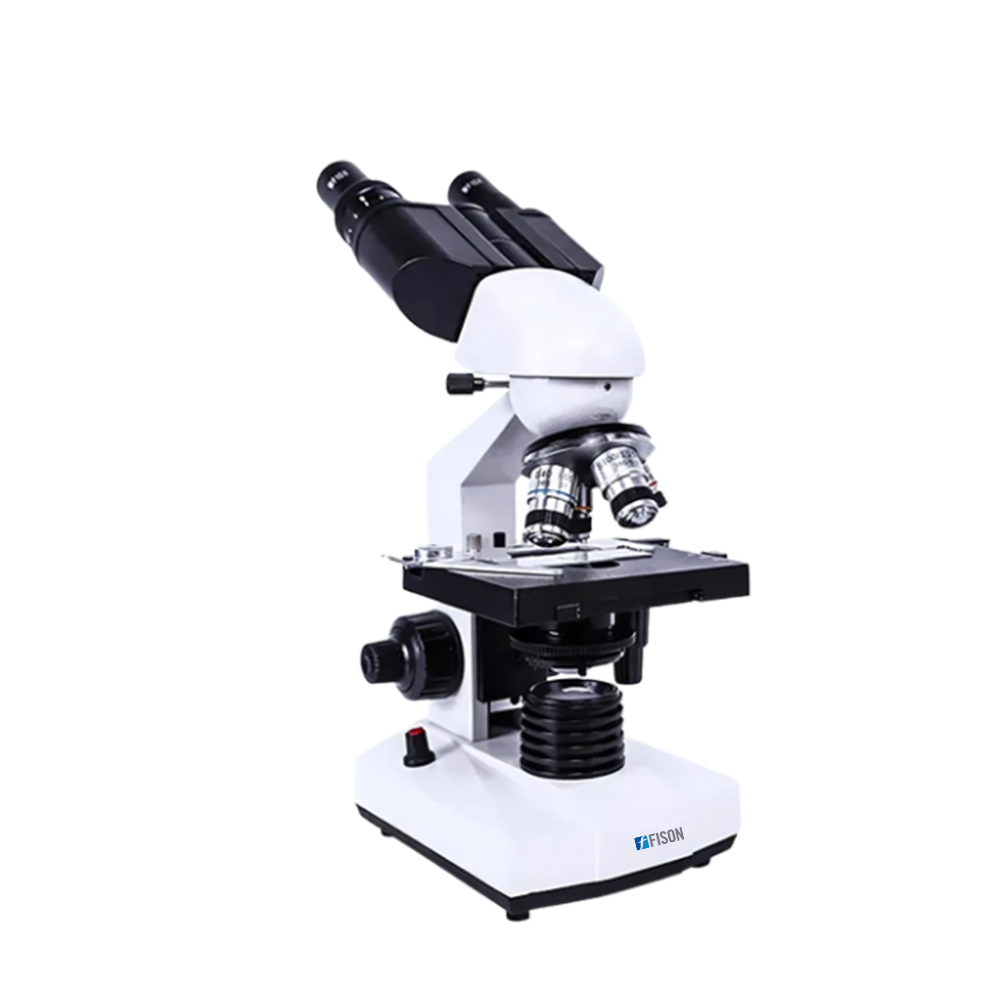

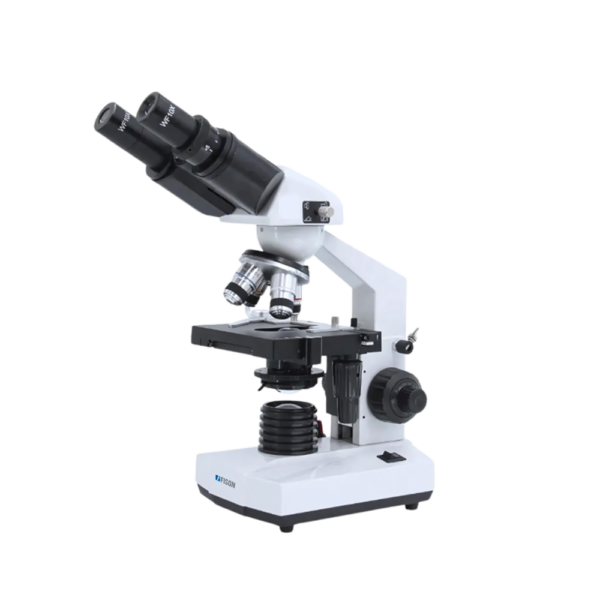

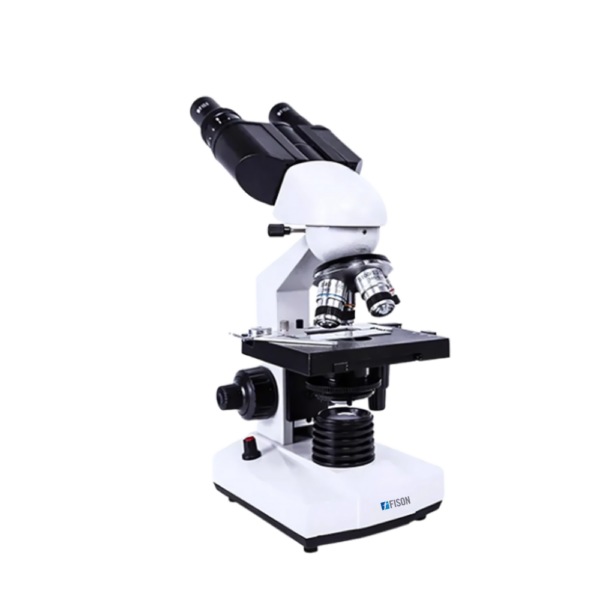

Biological Microscope FM-BM-C105 is a high-performance microscope that contains high-point oculars with 10× magnification for comfortable, extended viewing. It is equipped with a Koehler light source, providing uniform illumination for clear and accurate observations. This features a precise mechanical stage for smooth and accurate sample movement. Our Microscope has flexible rubber knobs for a comfortable, reducing fatigue during extended use.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Biological Microscope FM-BM-C105 is used for studying cells, bacteria, and tissues in labs, medical diagnostics, education, and industrial testing.

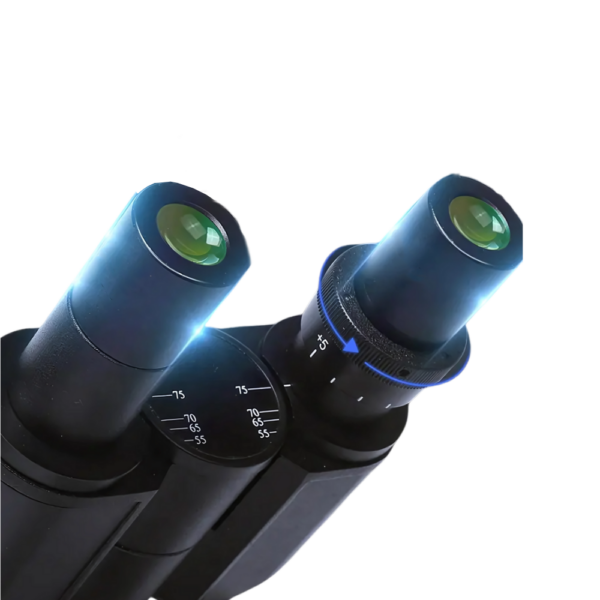

| High Point Ocular | WF10× / 20mm (23.2) |

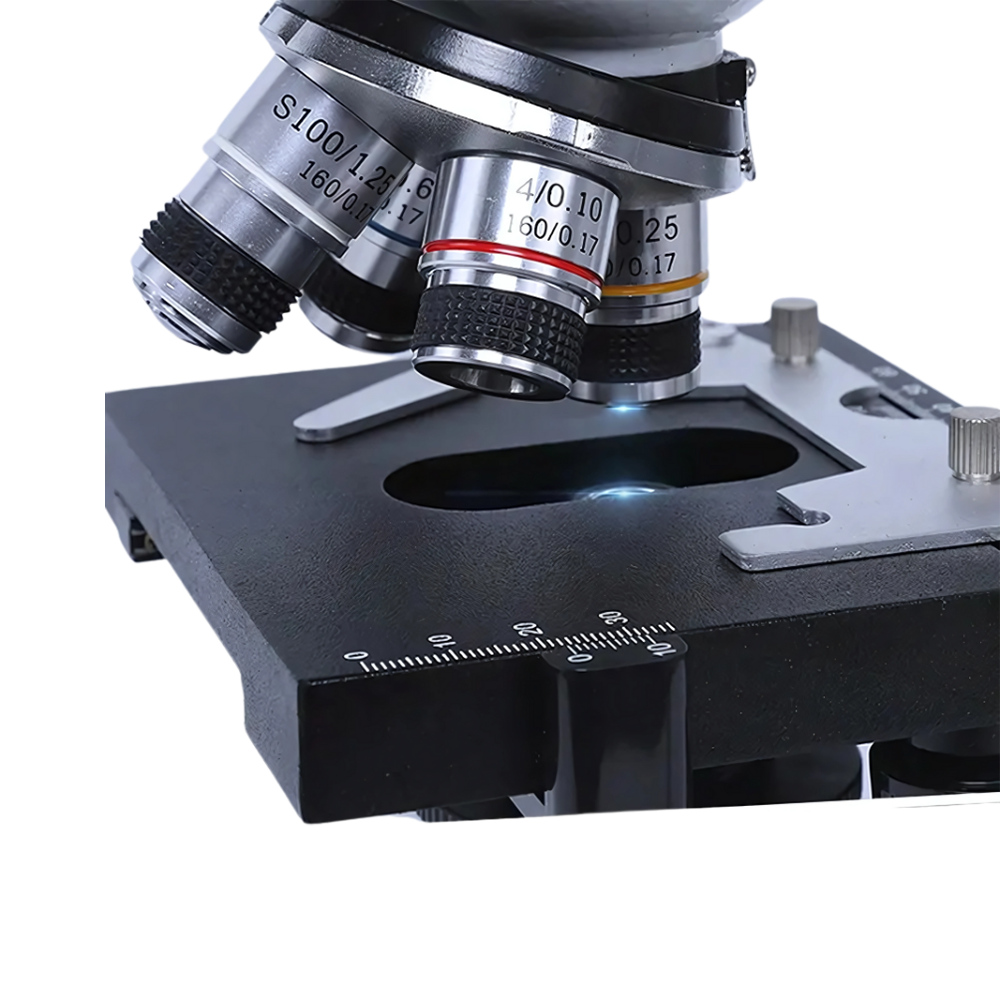

| Infinity Plan Objectives | 4× / 0.10 (Working Distance = 12.10mm),10× / 0.25 (Working Distance = 4.64mm),20× / 0.40(S) (Working Distance = 2.41mm),40× / 0.66(S) (Working Distance = 0.65mm),100× / 1.25(S, Oil) (Working Distance = 0.12mm) |

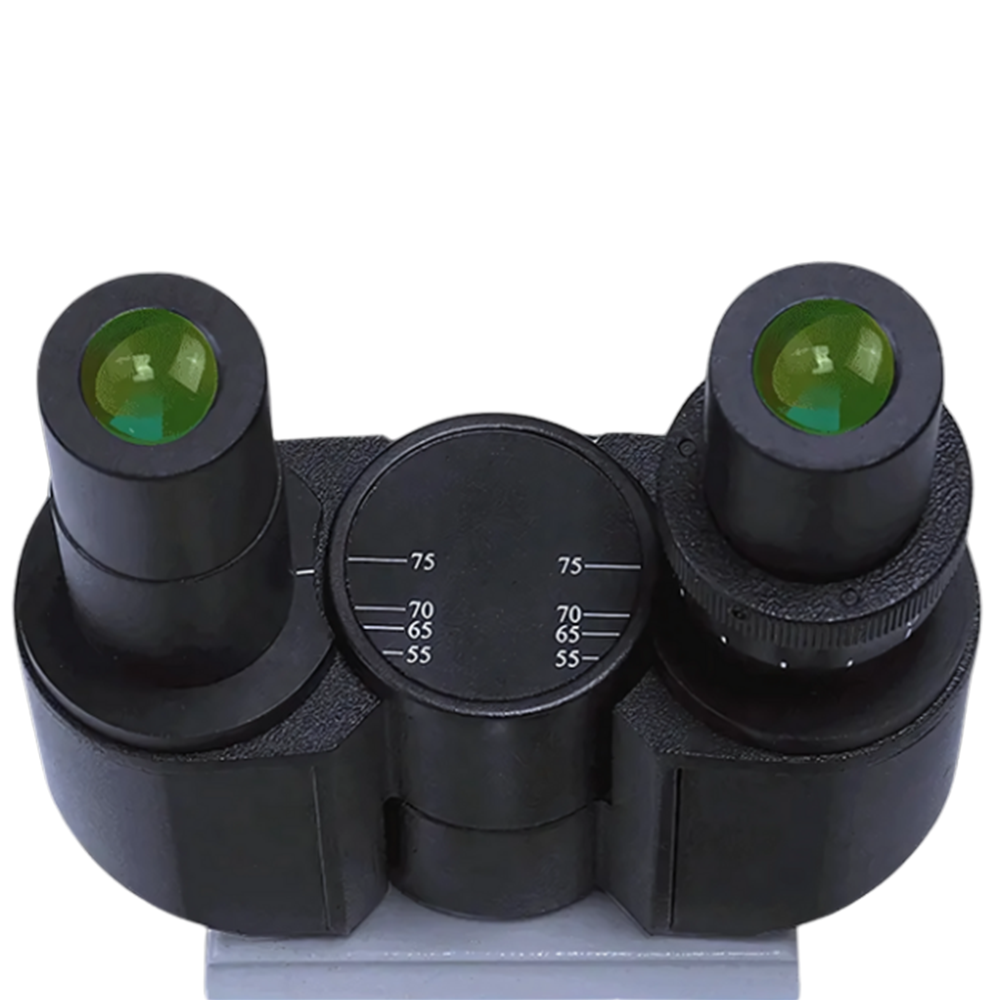

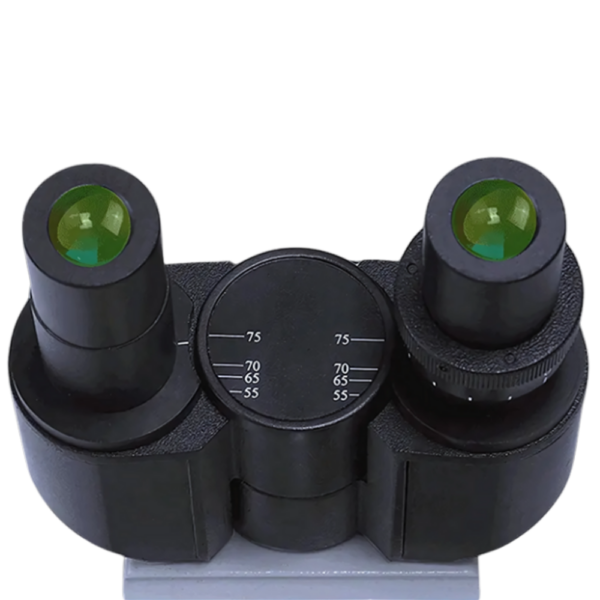

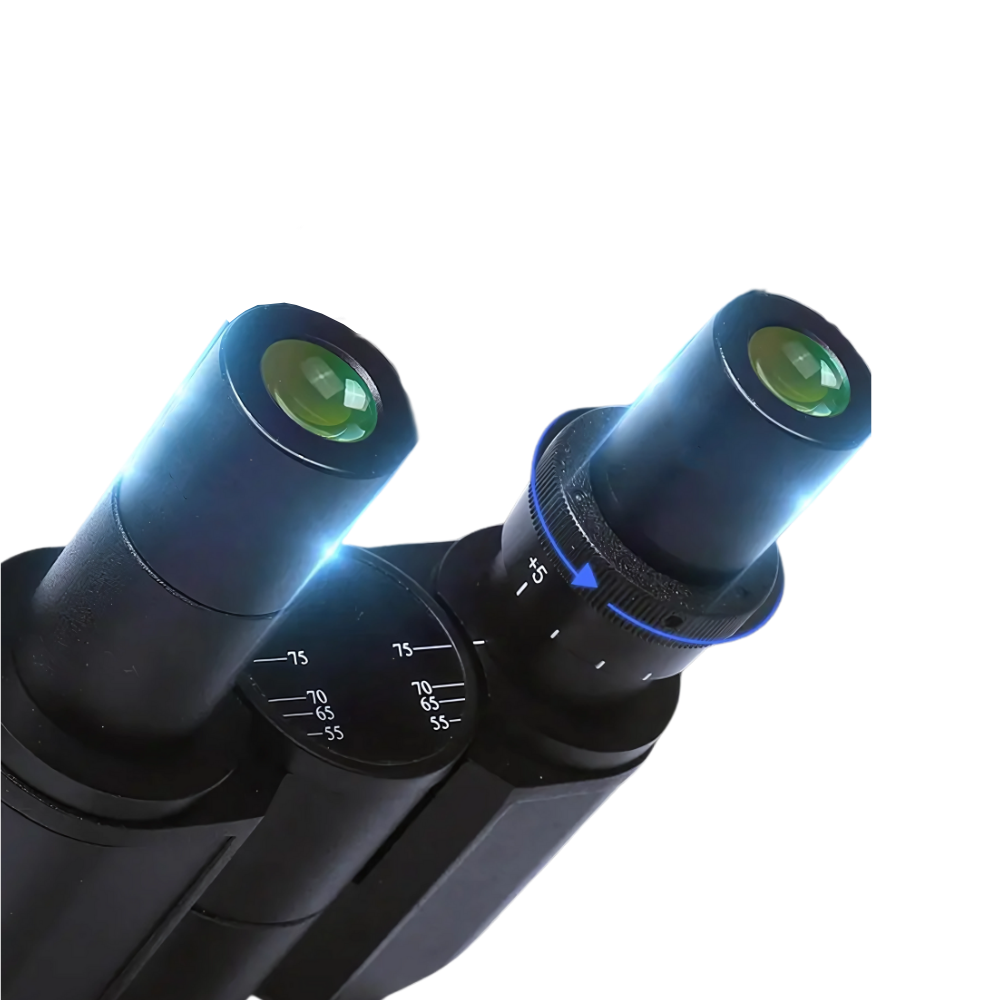

| Binocular Head | Inclination Angle 30°, Rotation Angle 360°, Interpupillary Distance: 48mm to 75mm |
| Nosepiece | Quintuple |

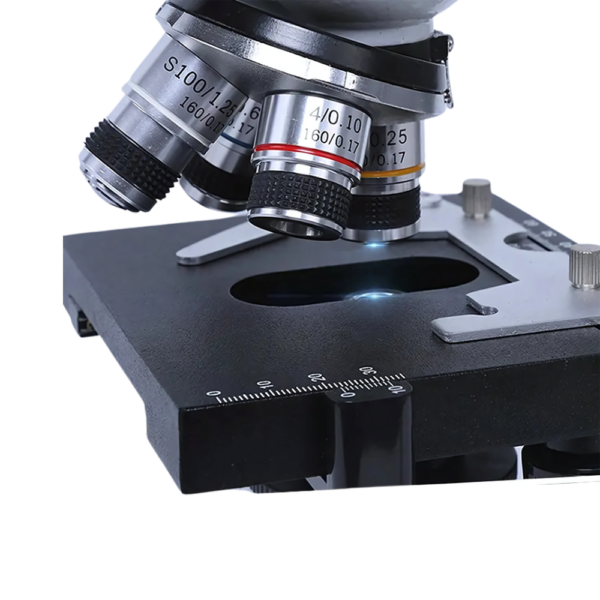

| Mechanical Stage | Size: 185×145mm, Traveling Range: 78mm×55mm, Coaxial Coarse, Fine Focus, Two-Slide Holders |

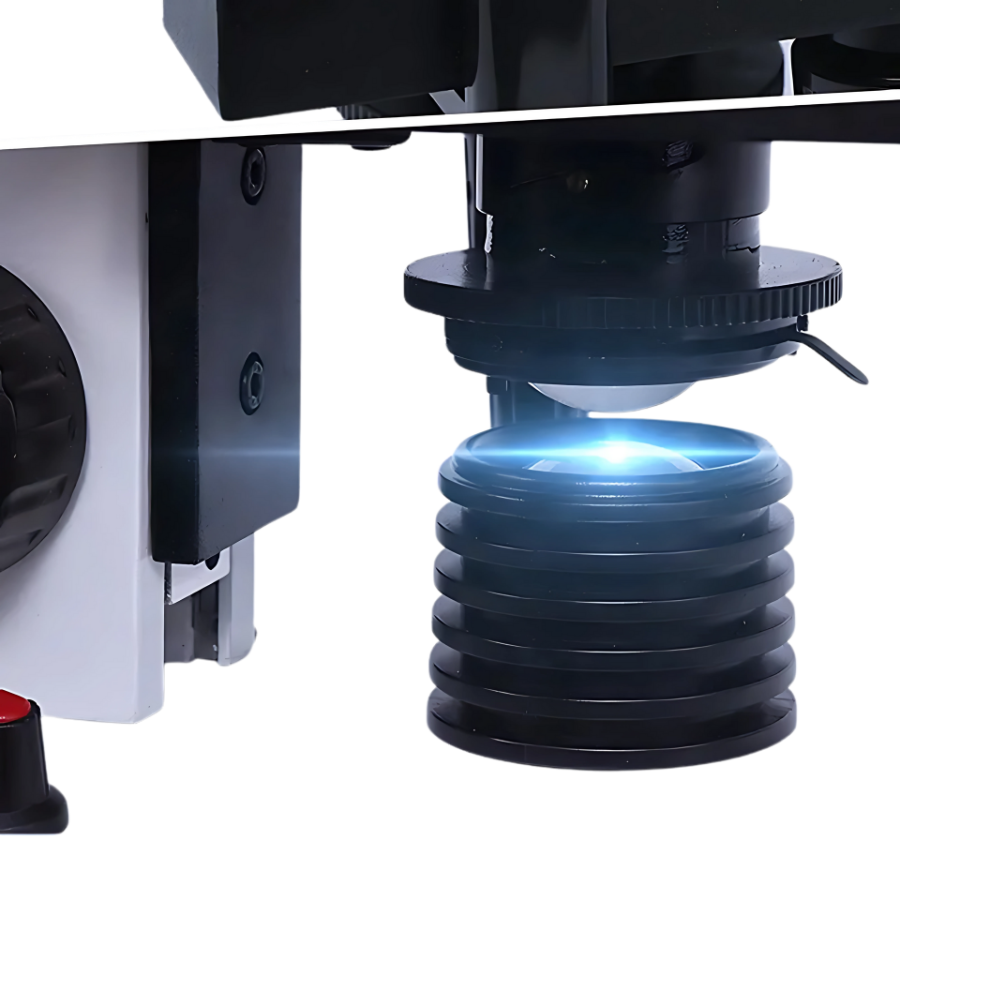

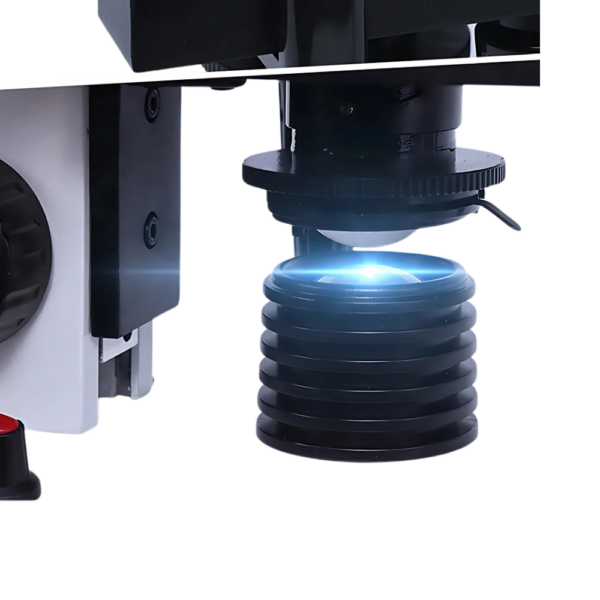

| Abbe Condenser | N.A. 1.25, iris diaphragm |
| Microscope Filters | Blue |
| Power Supply | 100V to 240V, 12V/20W Halogen Light, 6V/30W Halogen Light, 3W-LED Light System |
| Dimensions (L×W×H) | 542 × 265 × 355mm |
| Weight | 11kgs |
