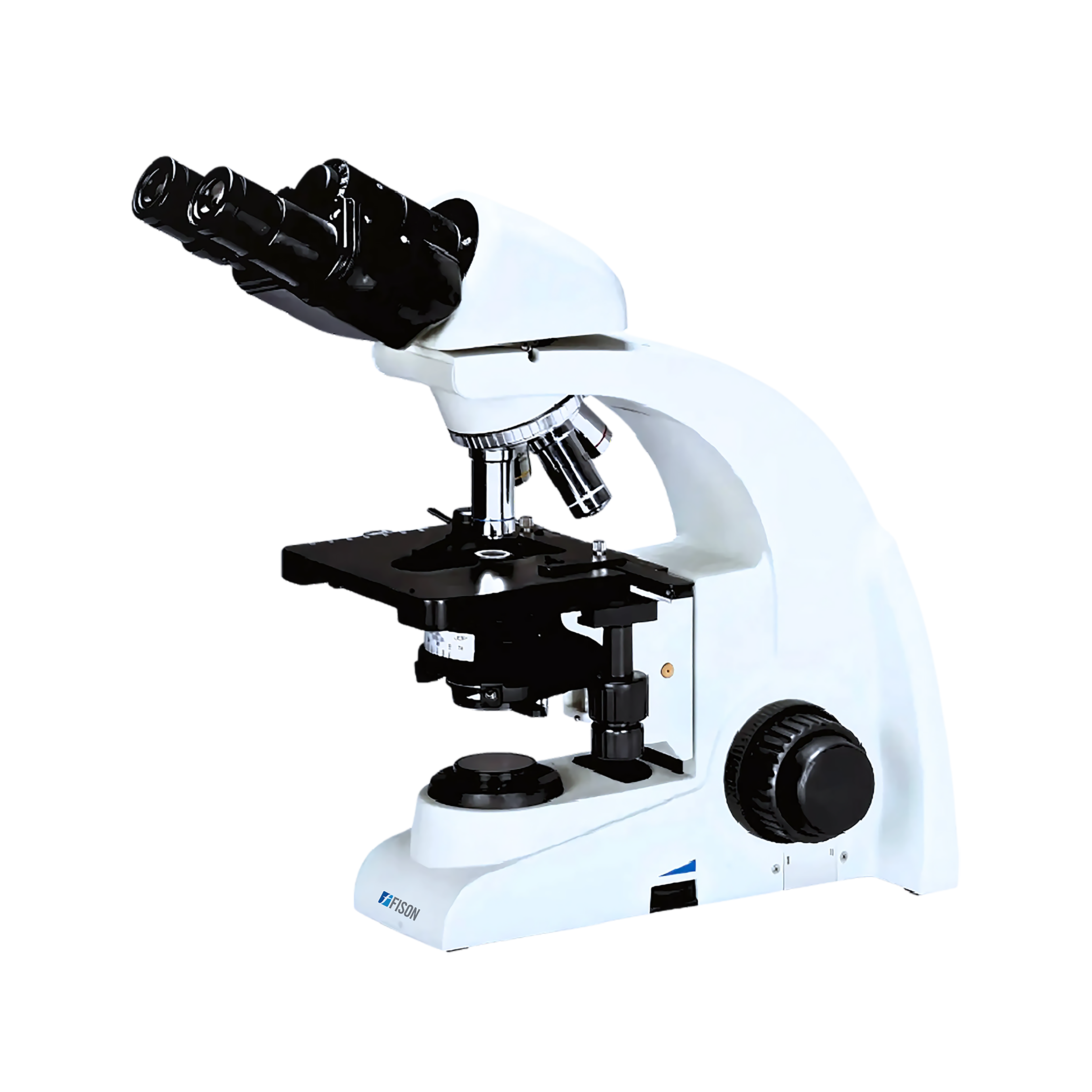

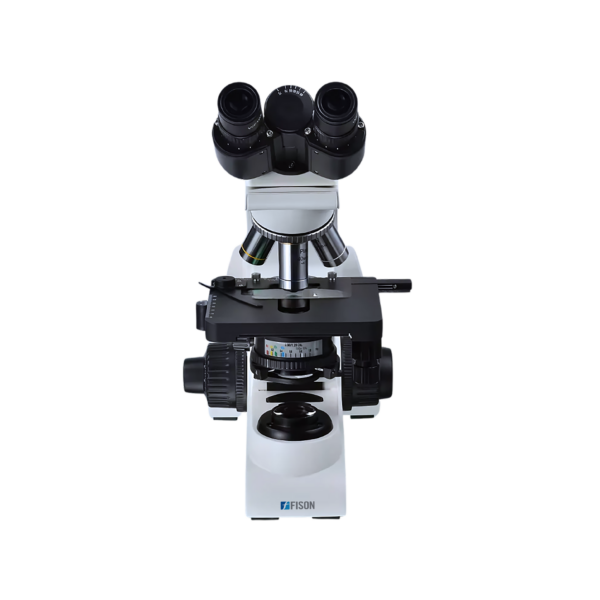

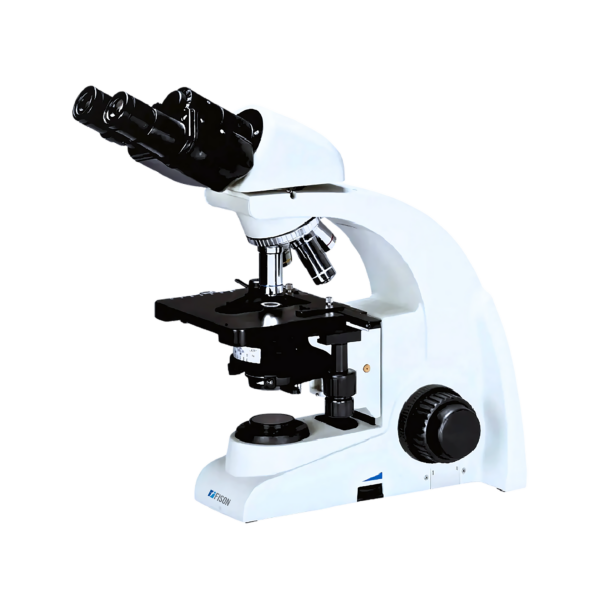

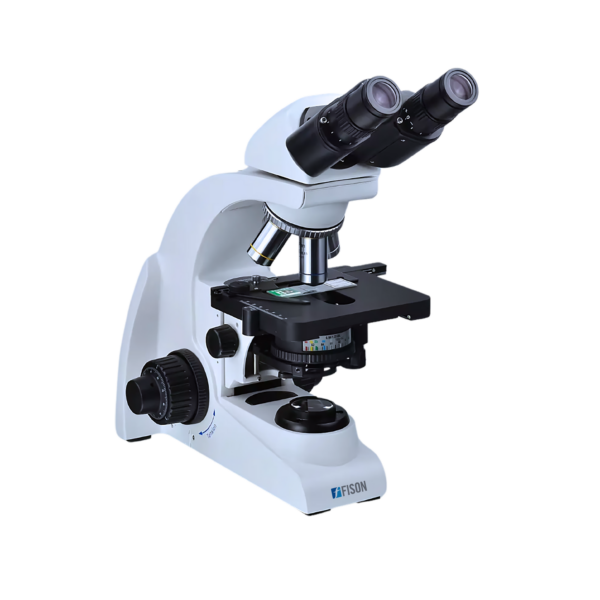

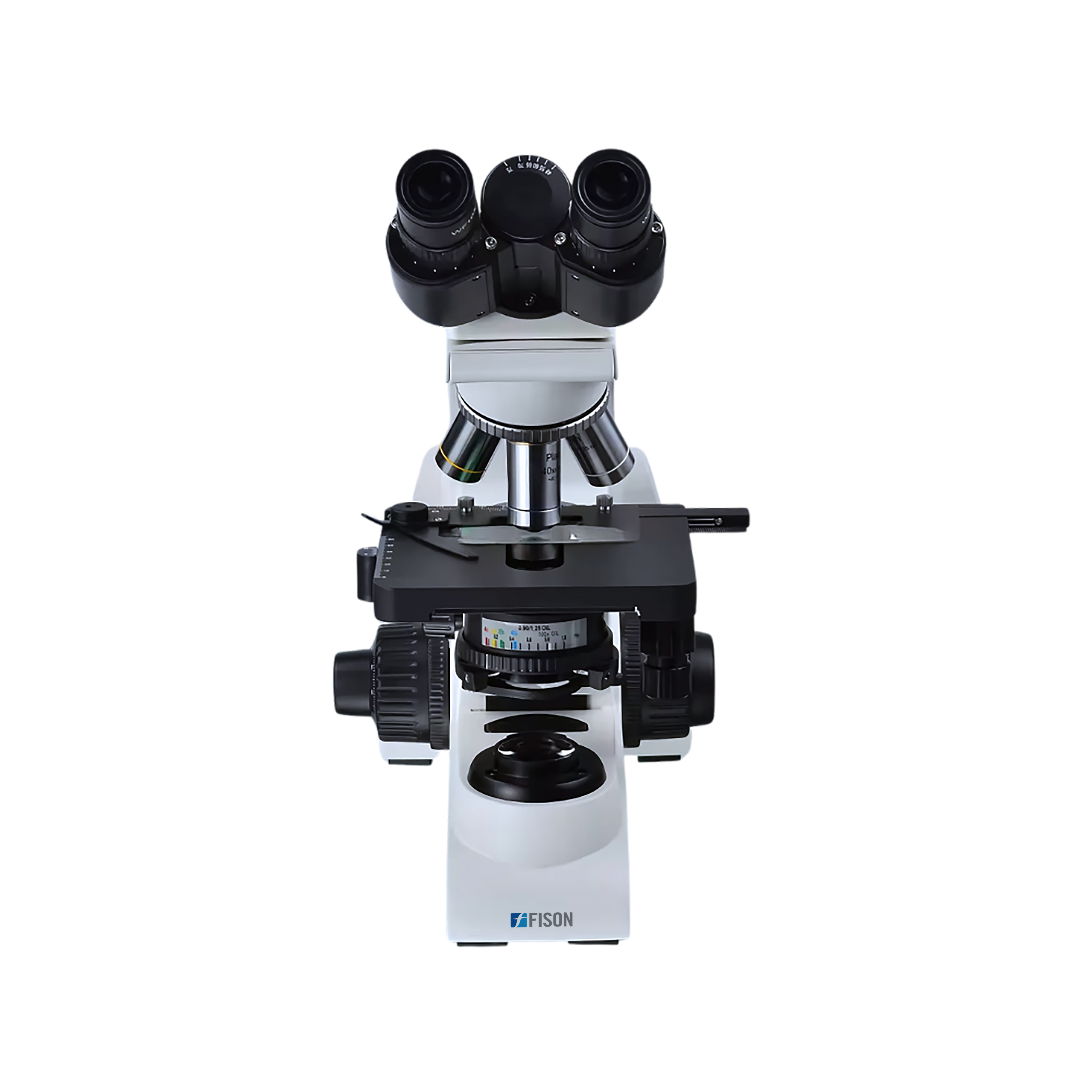

Biological Microscope FM-BM-C100 offers infinite plane achromatic optical system F = 200 mm. It has Siedentopf-Binocular Head, Inter-pupillary distance 52 to 75 mm, 30° inclined, 360° rotable. Designed with infinite achromatic objectives 4X / 0.13, 10X / 0.30, 40X / 0.70, 100X / 1.25 (S, O) and a WF10X / 18 mm eyepiece with the high point to provides better observation. Coarse and fine knob focusing with Division: 0.001 mm, Max: 20 mm. Swing type NA = 1.25 (O) with the Iris diaphragm with blue filter increases its quality of result.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Biological microscopes are used to study organisms and their vital processes. Microscopes used in this field range widely, from relatively simple optical microscopes to very advanced imaging systems used in cell research, forensic medicine, and state-of-the-art high resolution molecular studies, etc.
| Optical&System | Infinity Optical System, F = 200 mm |
| Viewing Head | Siedentopf-Binocular Head, Inter-pupillary distance 52 to 75 mm, 30° inclined, 360° rotable |
| Eyepiece | WF 10X/18 mm with the high point |
| Objective | Infinite Plan Achromatic Objective 4X / 0.13, 10X / 0.30, 40X / 0.70 (S), 100X / 1.25 (S,O) |
| Nosepiece | Quadruple&Inward |
| Stage | Stage size: 142×135 mm, Moving Range: 76×52 mm |
| Focusing | Coarse and fine focusing knob, Division: 0.001 mm, &Max: 20 mm |
| Condenser | Swing type NA = 1.25 (O) with the Iris diaphragm |
| Filter | Blue |
| C-mount | Not applicable |
| Illumination | 6 V 20 W Halogen Lamp, Adjustable |
| Packaging Dimension | 480×470×280 mm |
| Gross Weight | 9.1 kg |
| Net Weight | 6.7 kg |
