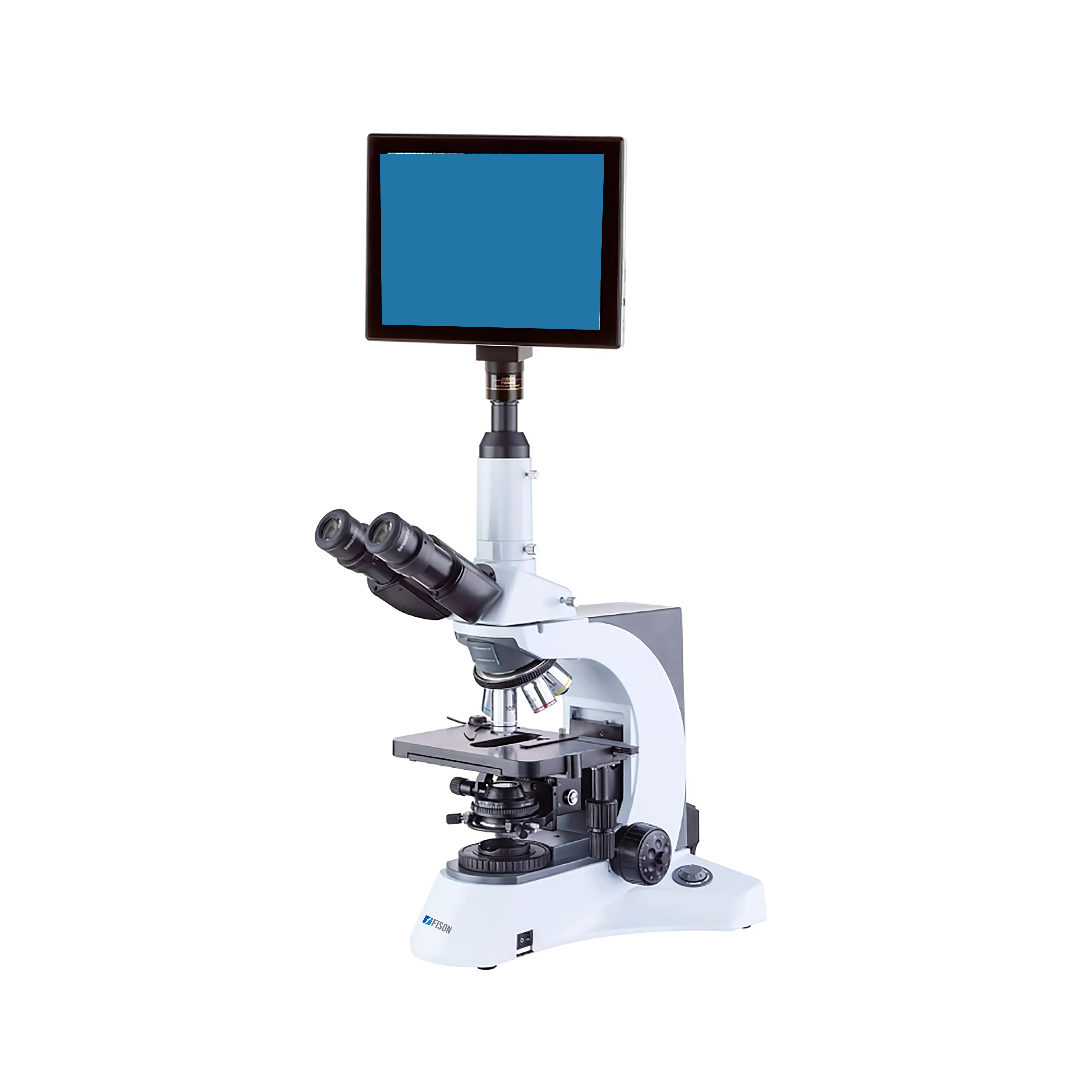

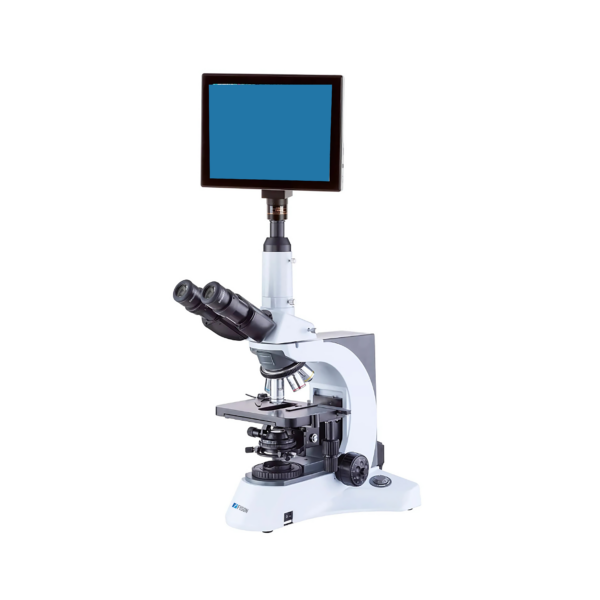

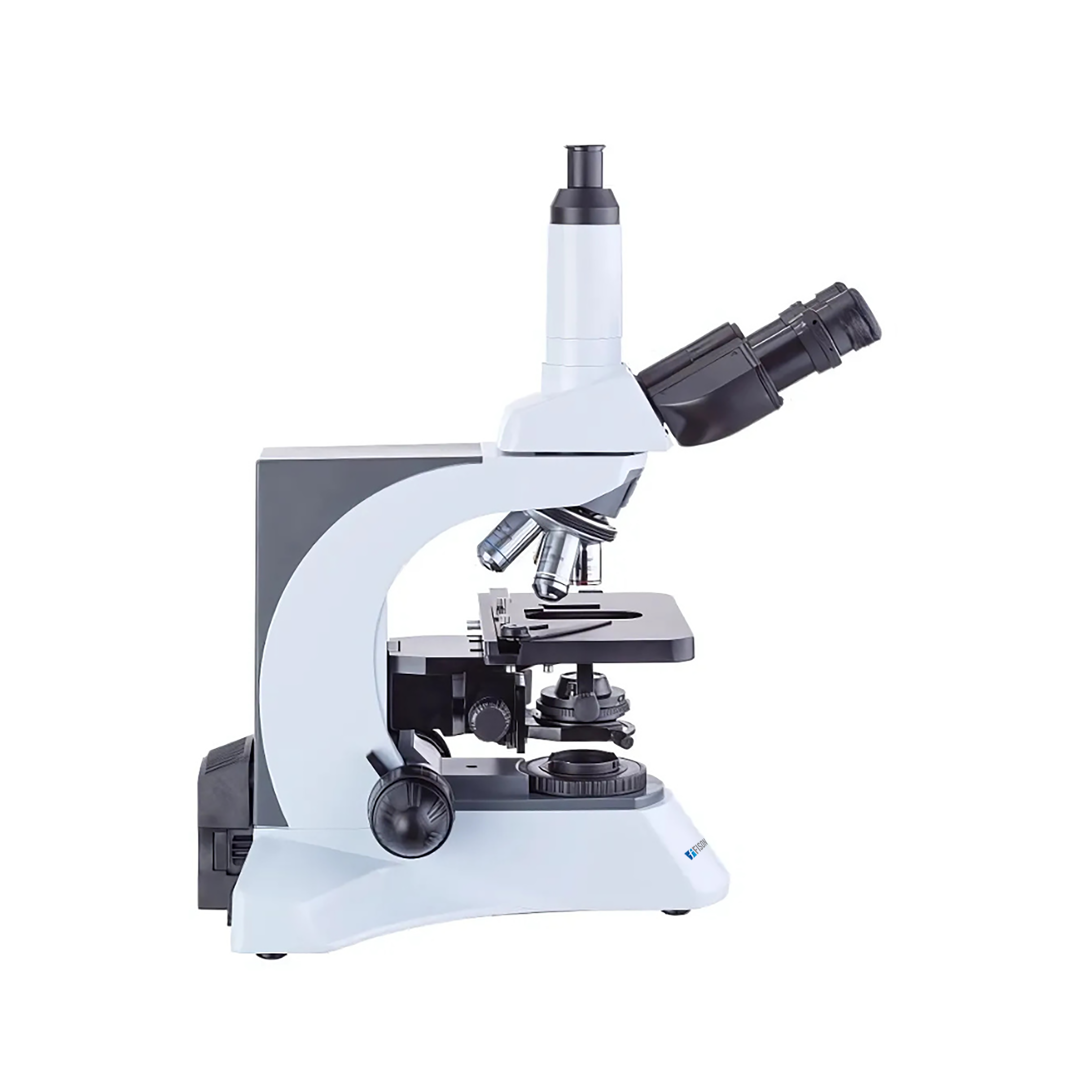

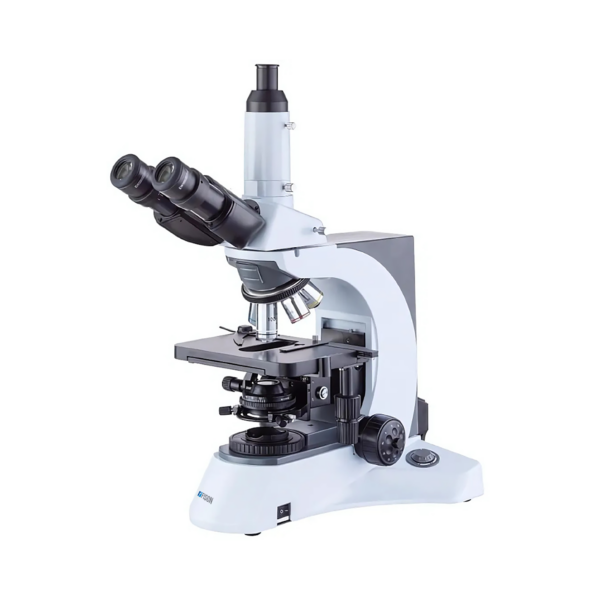

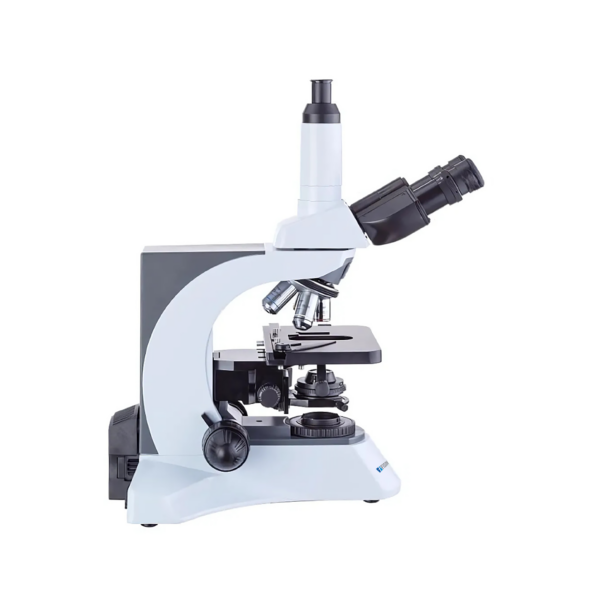

Biological Microscope FM-BM-A105 offers infinite optical system, features Trinocular viewing head which is 30° inclined, offers 360° rotation, and Interpupillary distance range of 48 to 75 mm, with dioptre adjustment ± 5, video adapter C munt 1X for Digital camera. Designed with Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) and Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm to offer better observation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It finds application in microbiology, biotechnology, pathology, cell research, forensic medicine, etc. Biological microscopes are used to study organisms and their vital processes through different types of staining.
| Optical System | Infinite Optical System |
| &Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, Interpupillary distance 48 to 75 mm, dioptre adjustment ± 5,Video adapter C munt 1X for Digital camera |
| &Eyepiece | Extra Wide field EW10X/22 mm and Eyepiece tube 30 mm |

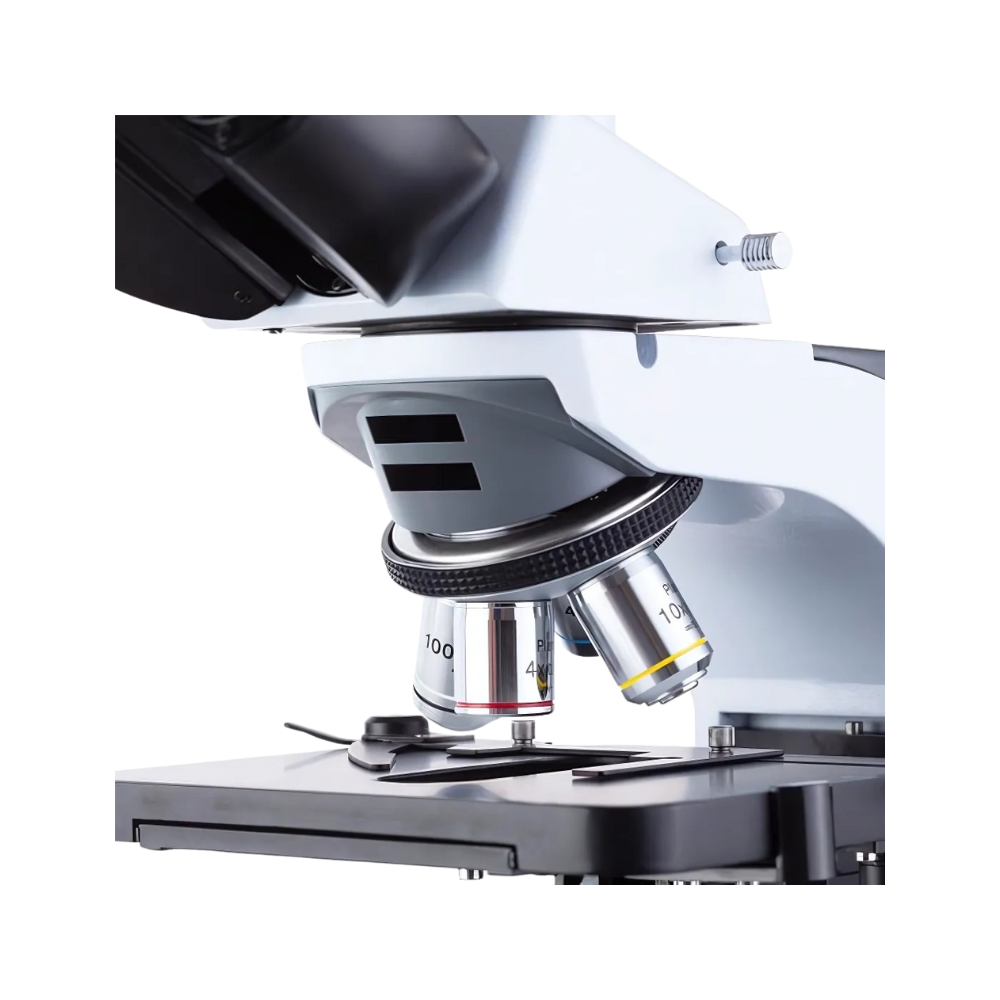

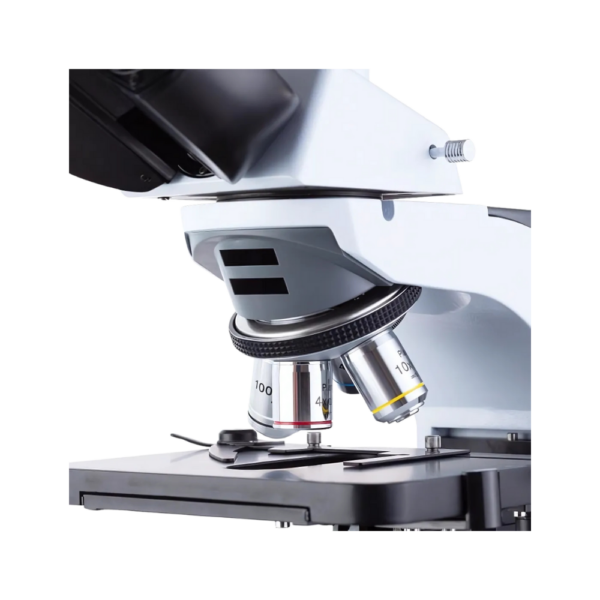

| &Objectives | Infinite Plan Achromatic objectives 4X, 10X, 40X (Spring), 100X (Spring, oil) |
| &Nosepiece | Backward Sextuple Nosepiece |
| &Focusing system | Coaxial coarse & fine focusing knob Fine division 0.001 mm, coarse stroke 37.7 mm per rotation Fine stroke 0.1 mm per rotation, moving range 24 mm |
| &Stage | Double layer mechanical stage size: 185 × 142 mm, range: 75 × 55 mm |

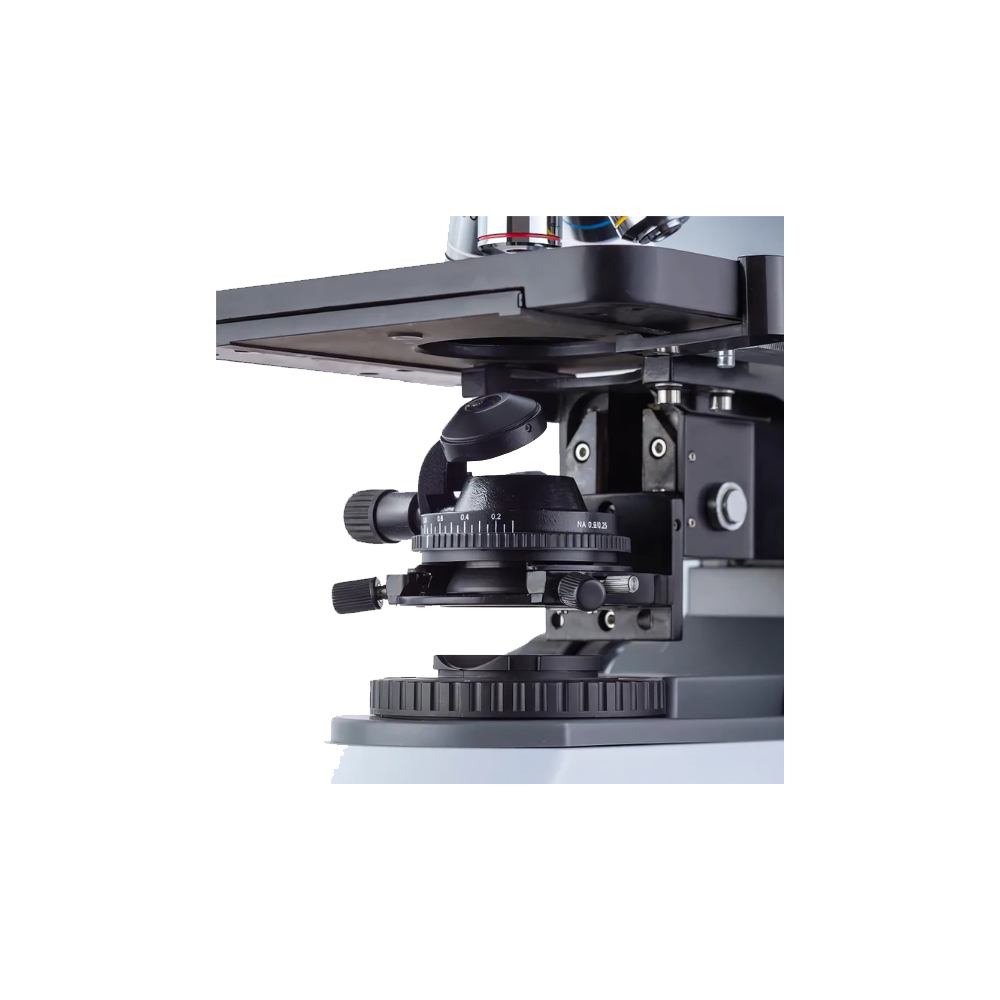

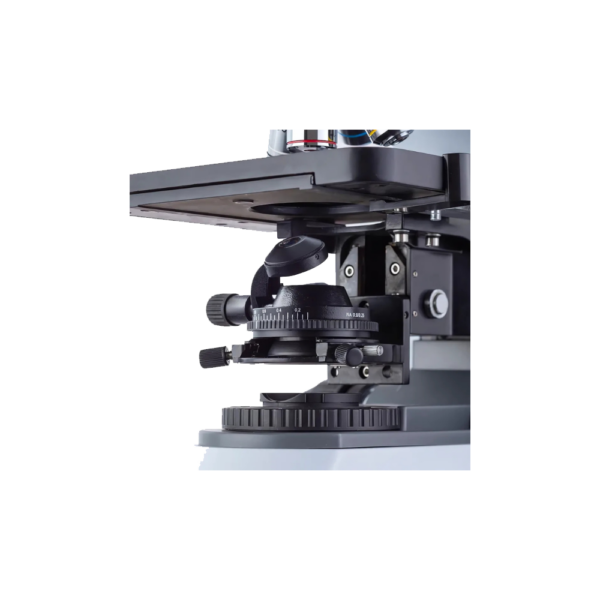

| &Condenser | Swing-out Achromatic Abbe Condenser N.A. 0.9 iris diaphragm |
| &Illumination | Transmitted kohler illumination, aspherical collector, halogen lamp 6V/30 W house |
| Filter | Blue filter, Green filter |
| Power supply | 220 to 240 V, 50 Hz |
| Dimension (L×W×H) | 358×280×460 mm |
| &Weight | Approx. 15 kg |
