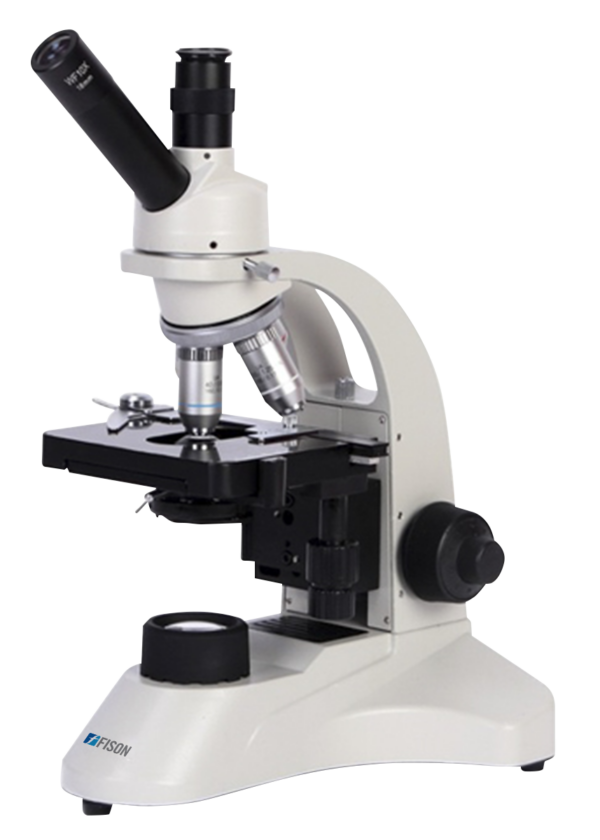

Biological Microscope FM-BM-A104 comes with 45° inclined monocular viewing head, 40 to 1600X zoom magnification range, with camera attachment for microscopic observation. With ergonomic design, high quality 195 achromatic objectives are used to reduce strain on eyes during observation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in clinical research, education, teaching field, life science research institutes, laboratories, centers, and colleges.
| Optical System | Finite Optical System |
| Viewing Head | Monocular viewing head, 45° inclined, 360° rotation |
| Magnification | 40X to 1600X |
| Objectives | 195 Achromatic objectives 4x, 10x, 40x (Spring) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, three revolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Voltage | 220 V, 50 Hz |
| Weight | 10 kg |
