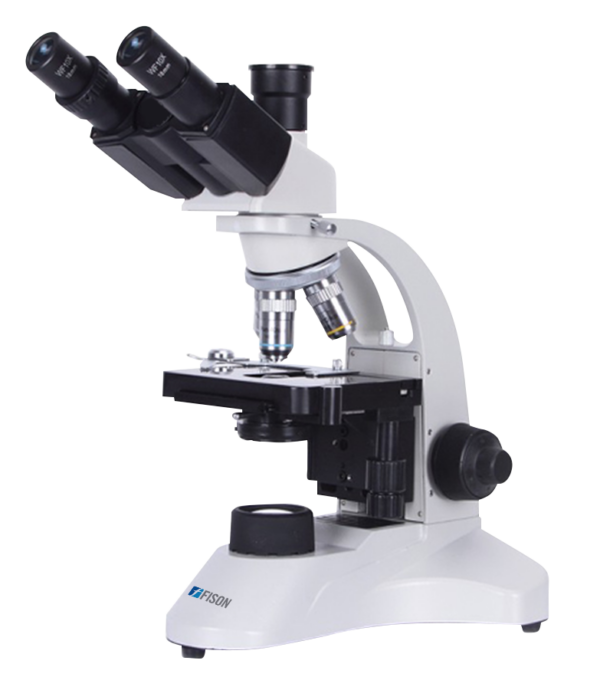

Biological Microscope FM-BM-A103 comes with trinocular 30° inclined viewing head, 40 to 1600X zoom magnification range, with camera attachment for microscopic observation. With ergonomic design, high quality plan achromatic objectives are used to reduce strain on eyes during observation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for microscopic examination across medical, tissue culture industries, gemology, metallurgy, as well as inspection of electrical board, and others.
| Optical System | Finite Optical System |
| Viewing Head | Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm |
| Magnification | 40X to 1600X |
| Objectives | Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil) |
| Eyepiece | Wide field WF10X/18mm and Wide field WF16X/15mm |
| Nosepiece | Inward, Quadruplerevolving nosepiece |
| Focusing system | Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm |
| Stage | Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm |
| Condenser | Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob |
| Illumination | 3W LED lamp, brightness adjustable |
| Power | External power supply (adapter), AC 100V-240V, DC 5V/2A |
| Voltage | 220 V, 50 Hz |
| Weight | 14 kg |
