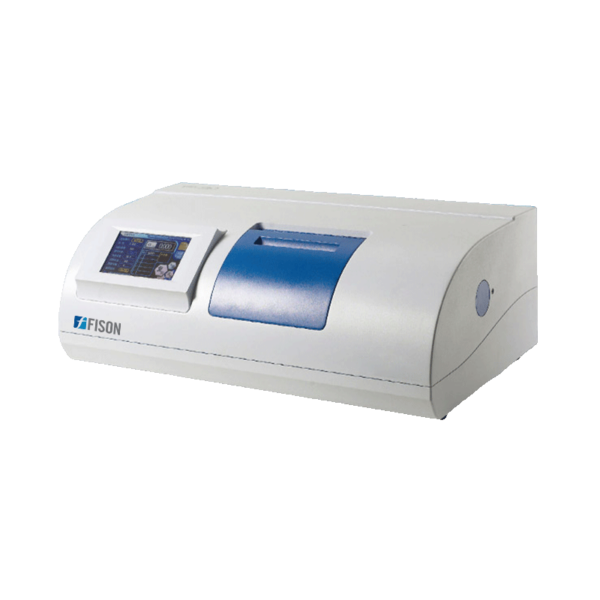

Automatic Polarimeter FM-PMR-A100 is a microcomputer-controlled device, automatically measuring and recording the data. Preheating is unnecessary as it streamlines detection process and saves time. LED lamp used as a light source to emit polarized light. Equipped with polarizers to ensure that the light is polarized in a specific direction. Automatic repetition of measurement for almost 6 times.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Automatic polarimeter is used in detection of sugar, pharmacy, food, drugs, chemical testing also for detection of starch, agriculture products, amino acids & other materials.
| Measuring range | ± 45⁰ (Optical rotation) / ± 120⁰ Z (sugar) |
| Measurement mode | Four modes: Optical rotation, specific rotation, concentration and sugar concentration |
| Minimum reading | 0.001° (optical rotation) |
| Accuracy | ± 0.01⁰ (-15 ⁰ ≤ optical rotation ≤ + 15 ⁰) ± 0.02⁰ (optical rotation < -15 ⁰ or optical rotation ˃ + 15 ⁰) |
| Repeatability | 0.02⁰ (Optical rotation) |
| Minimum Sample transmittance | 0.01 |
| Light source | LED lamp |
| Working wavelength | 589 nm |
| Test tube | 200 mm, 100 mm (constant temperature tube) |
| Temperature control range | 15 to 30 ℃ |
| Temperature accuracy | ± 0.5 ℃ |
| Communication | USB and RS232 |
| Power supply | AC 110/220 V + 10 %, 50/60 Hz |
| Dimension (W × D × H) | 690 × 370 × 280 mm |
| Packaging dimension (W × D × H) | 820 × 500 × 510 mm |
| Gross weight | 43 kg |
