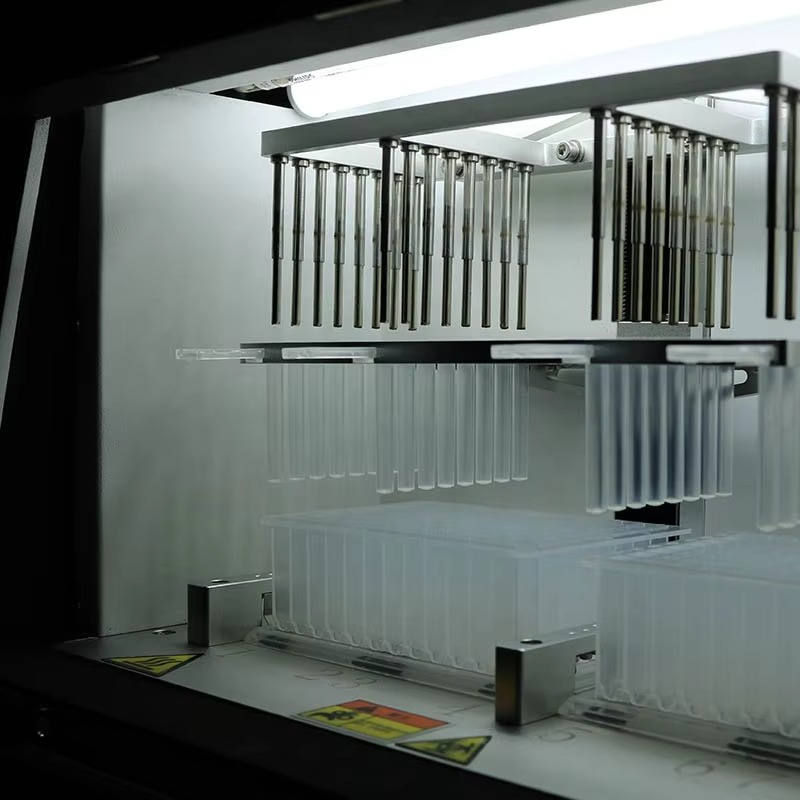

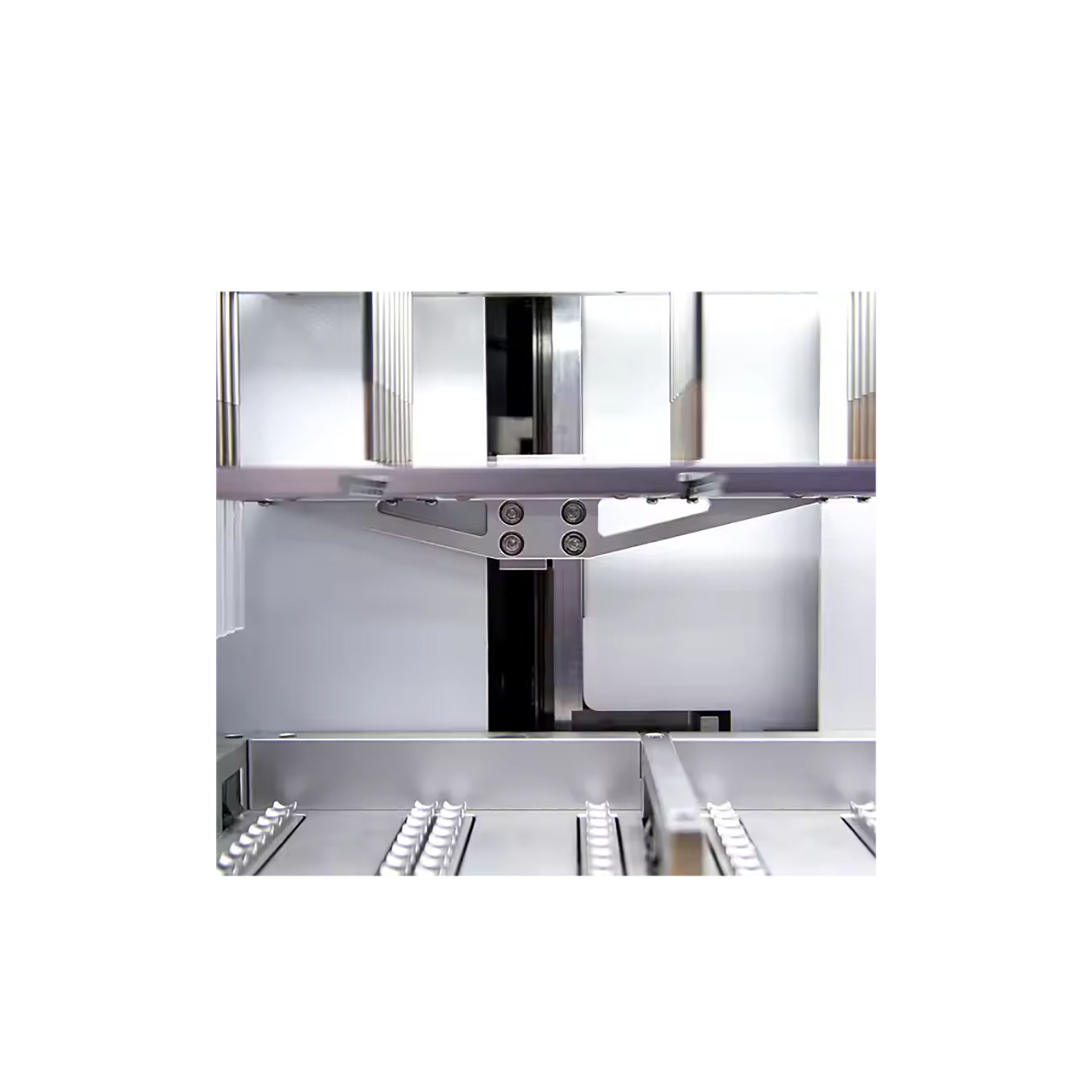

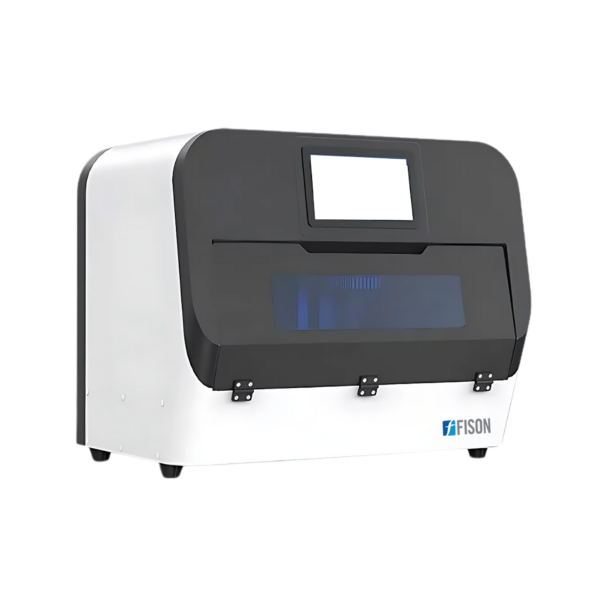

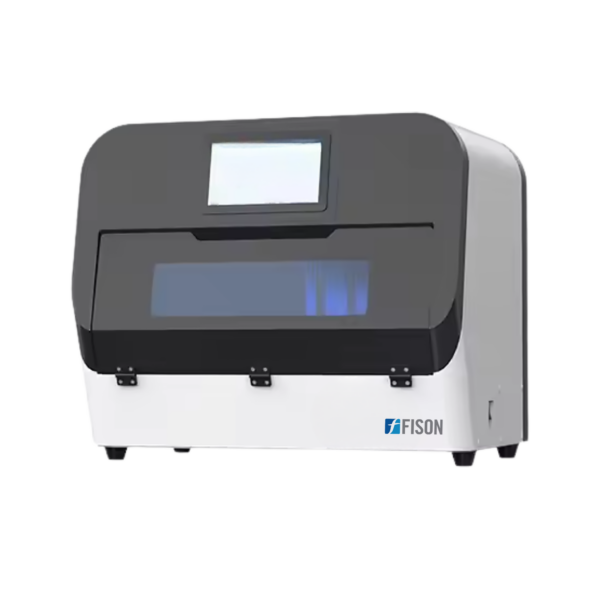

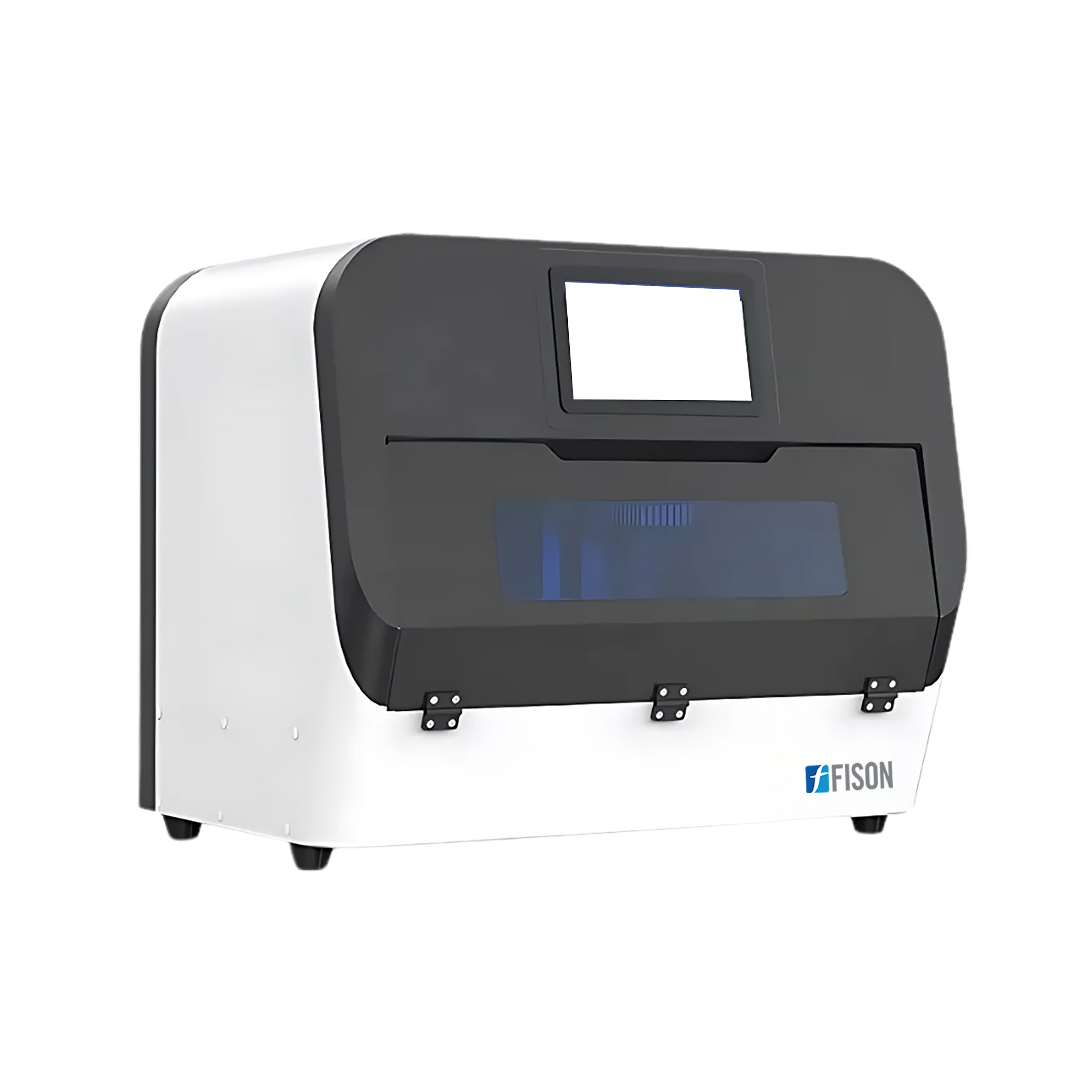

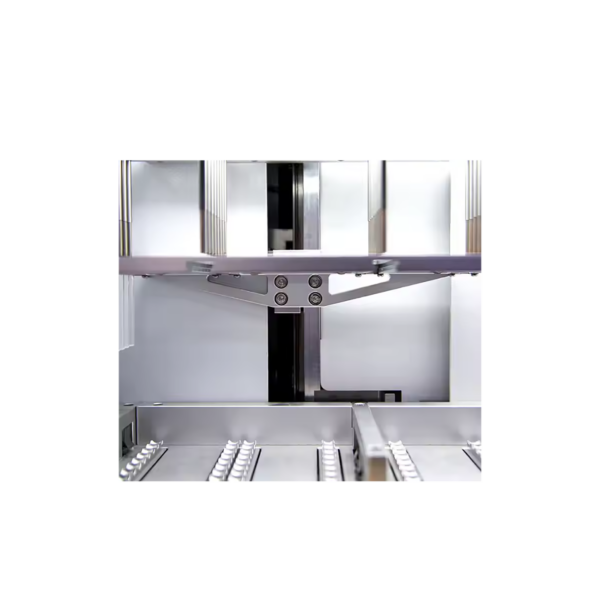

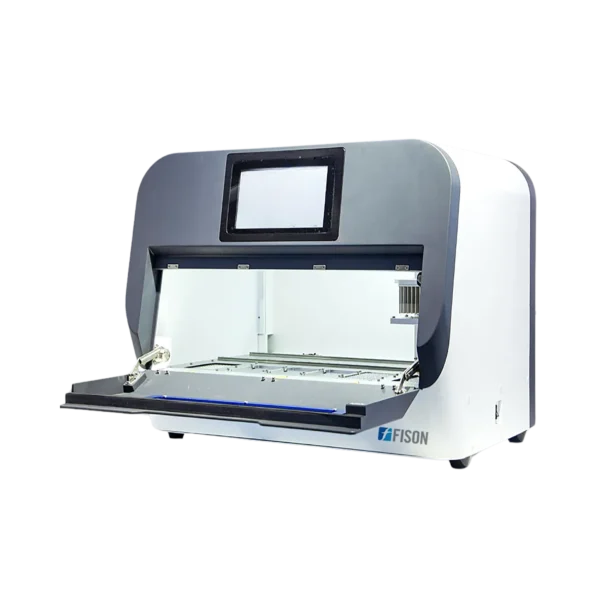

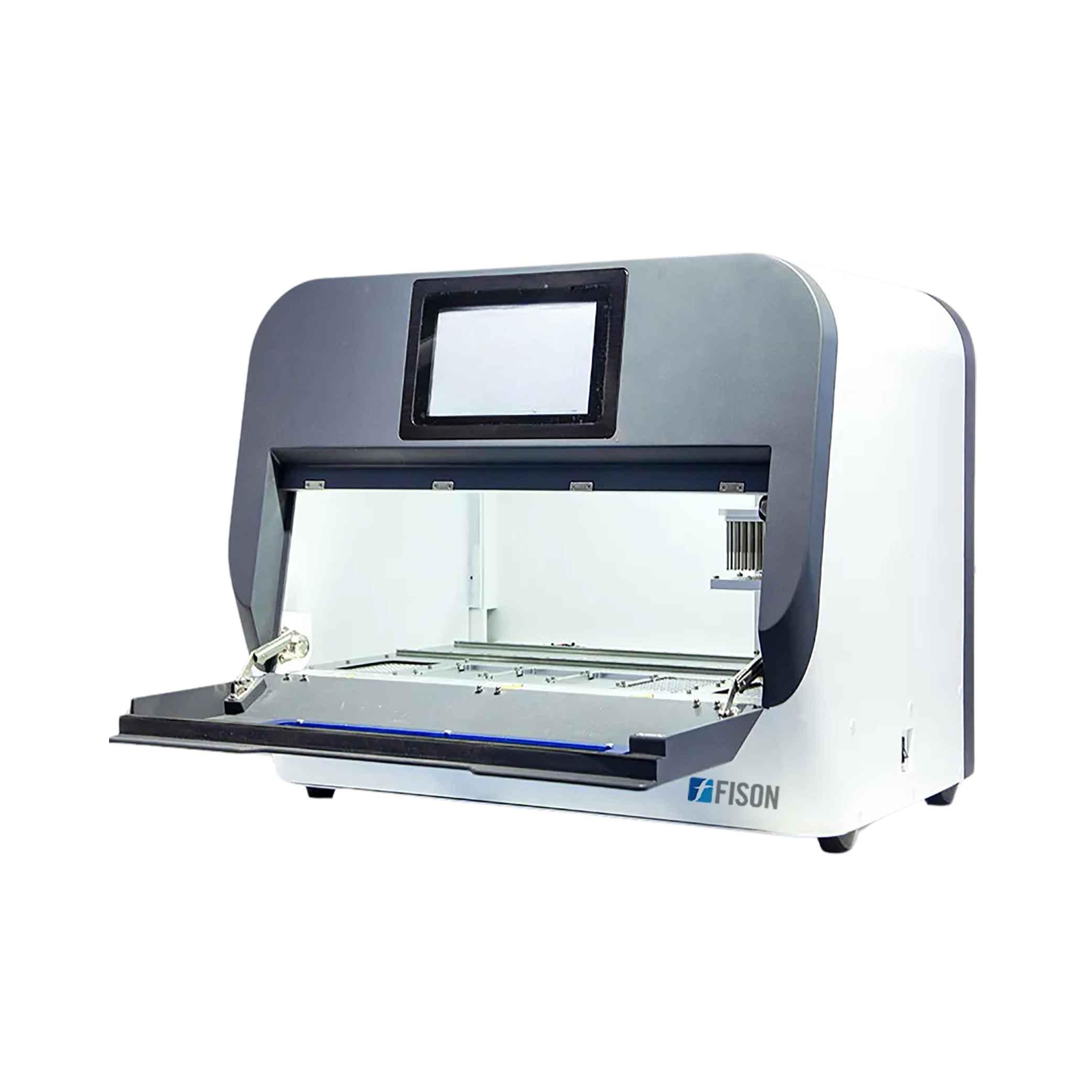

Automatic Nucleic Acid Extraction System FM-NES-A100 is an advanced nucleic acid purification system. Efficient temperature regulation of the device helps in reducing the processing time, ensuring smooth functioning. Integrated with module that combines shocking and heating functions. High standards contamination prevention is ensured by ultraviolet disinfection lamp and a HEPA filter. This system is in huge demand as it combines precision, efficiency, and safety to deliver exceptional results.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Automatic Nucleic Acid Extraction System plays an important role across clinical diagnostic research and development, pharmaceutical research, biotechnology, agricultural biotechnology, food safety and quality control, environmental monitoring, forensic science, personalized medicine, veterinary medicine.
| Nucleic Acid Extraction Method | Paramagnetic particle method |
| Sample Capacity | 96 well |
| Sample Volume | 20 to 1000 μL |
| Extraction Time | 11 min to 60 min |
| Magnetic Bead Recovery | ≥ 98% |
| Magnetic Flux of Bar | ≥ 4500 Gs |
| Operating Temperature | RT to 105 ℃ |
| Temperature Accuracy | 0.1 ℃ |
| Safety features | Power on self-check, Power off protection, High-temperature alarm, Over-temperature protection |
| Disinfection Method | UV Light |
| Operating System | Windows system |
| Storage | >1000 sets |
| Interface | USB |
| Power Supply | AC100 to 240 V 50 Hz/60 Hz |
| Package Size (W×D×H) | 940 × 710 × 910 mm |
| Gross Weight | 110 Kg |
