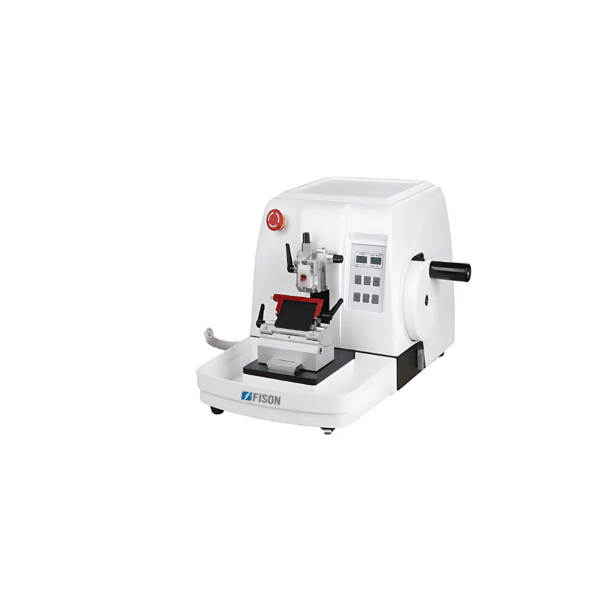

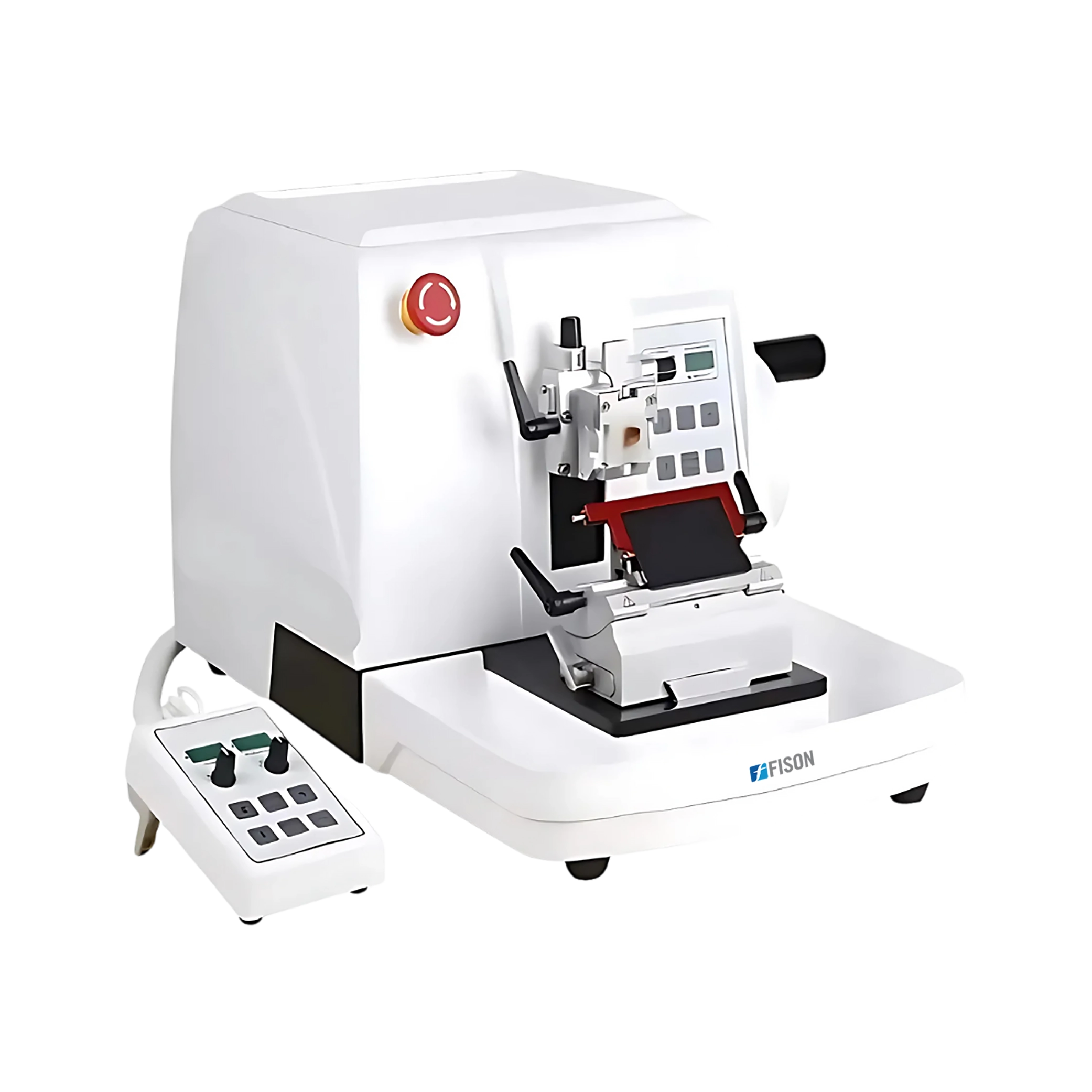

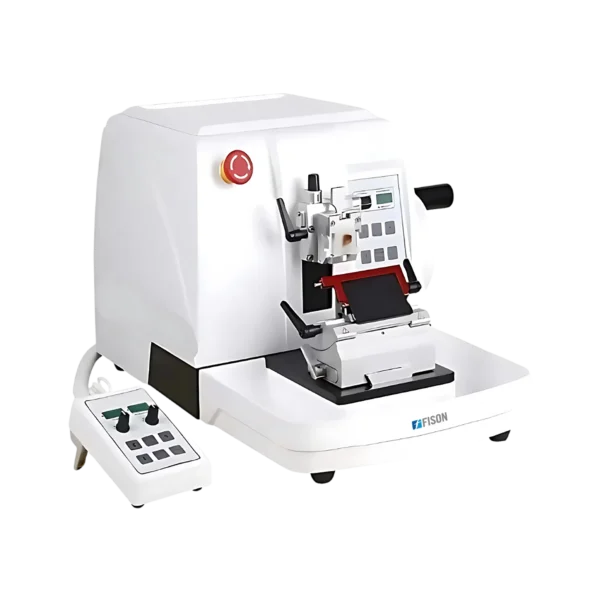

Automatic Microtome FM-MRT-C100 is a fully-automated streamlined molded housing microtome, designed with smooth running hand wheel and stepping-motor advance technology for fine sectioning and trimming of specimen with selectable specimen retraction. LED display shows the sectioning and trimming thickness of paraffin block. Unit contains precise micro motion specimen feeding system and removable waste tray for specimen dismantling. Built-in safety alarm system for fault diagnosis and braking system. It is used for tissue sectioning in routine histology, biological and industrial needs.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in routine histology, biological and industrial analysis and also suitable for section paraffin and frozen sections in biological, botanical, and materials science applications.
| Section thickness range | 0.25 to 100 µm |
| Section setting values | From 0.5 to 2.5 µm,0.25 µm increments From 2.5 to 5 µm, 0.5 µm increments From 5.0 to 10 µm, 1 µm increments From 10 to 30 µm, 2 µm increments From 30 to 60 µm, 5 µm increments From 60 to 100 µm, 10 µm increments |
| Trimming section range | 1 to 600 µm |
| Trimming setting values | From 1 to 10 µm, 1 µm increment From 10 to 20 µm, 2 µm increment From 20 to 50 µm, 5 µm increment From 50 to 150 µm, 10 µm increment From 150 to 600 µm, 50 µm increment |
| Minimum sectioning thickness | 0.25 µm |
| Feed speed adjustment | 1500 µm/sto 3500 µm/s |
| Horizontal specimen feed | 25 mm |
| Vertical specimen stroke | 70 mm |
| Specimen orientation | Horizontal: ± 8°, Vertical: ± 8° |
| Specimen retraction | 0 to 50 μm（0, 5, 10, 15…..50 adjustable, 0 turn off the retraction) |
| Precision error | ± 1% |
| Movement range of specimen holder base | 65 mm |
| Movement range of blade press plate | ± 20 mm |
| Specimen dimension | 70 mm × 70 mm |
| Power | 150 W |
| Power supply | AC 220 V ± 10% 50 Hz |
| Overall Dimension (W × D × H) | 580 × 475 × 340 mm |
| Net weight | 41 kg |
