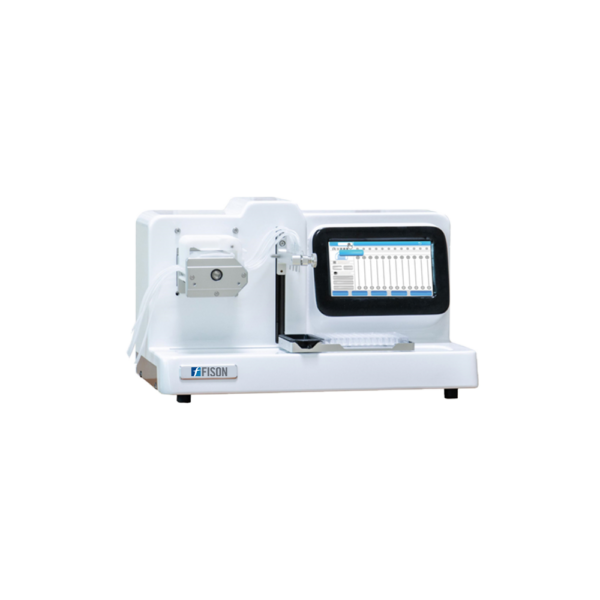

Automatic Dispenser FM-AD-A100 distributes reagent across 8 to 96 well plates. It rapidly delivers 100 µL of sample within 10 seconds. Incorporated with high quality peristaltic pump for precise liquid measurement. Features robotic arm to eliminate manual intervention and minimize contamination. Our Dispenser automates the process of sample handling for high-throughput analysis.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Automatic Dispenser automates sample preparation process for clinical diagnosis including ELISA, PCR, drug formulation, cosmetics, food and beverage industries.
| Dispensing Capacity | 5 to 9999 µL |
| Volume Increment | 1 µL |
| Plate Compatibility | 8 to 96 well plate |
| Dispensing Precision | 20 µL ≤ 5%; 100 µL ≤ 1.5% (96 well plate) |
| Dispensing Accuracy | 20 µL ± 1.5%; 100 µL ± 1 % (96 well plate) |
| Dispensing Speed | Adjustable |
| Dispensing Pipe | 8- channel |
| Waste Liquid Handling | Removable waste collection tray |
| Auxiliary Function | Shake, rinse, suck, pipe wash |
| Display | 7-inch touch screen |
| Power Supply | 220/110 V, 50/60 Hz |
| External Size | 465 × 275 × 280 mm |
| Packaging Size | 520 × 350 × 350 mm |
| Net Weight | 10 kg |
| Gross Weight | 13 kg |
