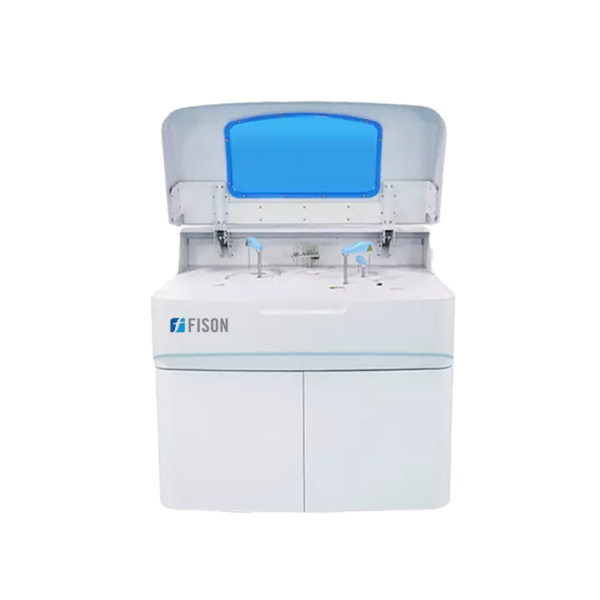

Automatic Chemistry Analyzer FM-ACA-B100 can perform 400 tests per hour with small sample volume of 1 to 70 µL. Sample probe features anti-collision and real time volume detection for accurate measurements. Stable tray temperatures facilitate efficacy of reagents during analysis. Integrated with user-friendly software for simplified data documentation. Our Chemistry Analyzer carries out end point, fixed point, kinetic and turbidimetry assays.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Automatic Chemistry Analyzer conducts routine clinical tests, biomarker diagnosis and immunoassays in hospital settings. It is also utilized for nutritional, toxicological, environmental testing and quality control analysis.
| Throughput | 400 Tests / hour |
| Analysis Method | End-point, Fixed-time, Rate (Kinetic), Turbidimetry |
| Sample Volume | 1 to 70 µL |
| Number Of Sample Positions | 60 |
| Reagent Volume | 10 to 350 µL |
| Number Of Refrigerated Reagent Positions | 90 |
| Reagent Tray Temperature Range | 2 to 8 °C |
| Reaction Tray Temperature | 37 ± 0.1°C |
| Reaction Tray Temperature Control Type | Real time monitoring |
| Sample Probe | Teflon coating, anti-collision function, liquid level detection |
| Mixer Probe | Independent stirring |
| Probe Washing | 7 step automatic washing system, both interior and exterior washing |
| Cuvette Type | Reusable |
| Number Of Cuvette | 120 |
| Cuvette Optical Length | 6 mm |
| Cuvette Washing | Automatic |
| STAT Function | Yes |
| Optical System | Post-spectral spectrophotometry |
| Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800 nm |
| Absorbance | 0 to 3.5 |
| Light Source | Halogen-tungsten lamp, 12V/ 20W |
| Calibration | Both Linear and Non-Linear Linear: K factor, 1-point, 2-point, multipoint Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot (2D), Daily QC, Monthly QC |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi direction, supports HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting modes |
| Working Temperature | 15 to 30°C |
| Operating Humidity | 40 to 85 % |
| Water Consumption | Deionized water: <12 L/h |
| Certifications | CE, FDA, ISO9001, ISO13485 |
| Power Supply | 220V ± 10% 50/60 Hz, 110V ± 10% 60 Hz, 500 VA |
| Dimensions (W × D × H) | 1170 × 775 × 1145 mm |
| Packaging Dimensions (W × D × H) | 1358 × 935 × 1387 mm |
| Net Weight | 190 kg |
| Gross Weight | 255 kg |
