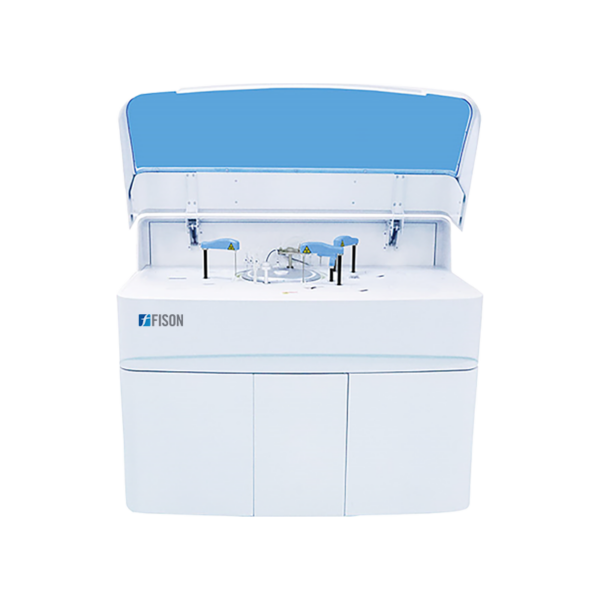

Automatic Chemistry Analyzer FM-ACA-A100 is fully automatic and capable of performing 800 photometric tests and 1200 ISE tests per hour. Provides rapid test performance with 160 reaction cuvettes, saves time, and improves efficiency. Helpful in transmission or rejection of certain wavelengths of light with a given optical filter. Grants high-speed printing of test results by a cost-effective printer.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is widely used to analyze enzymes, glucose, and proteins in various fields such as pharmaceutical industries, clinical laboratories, environmental testing, veterinary medicine, research, and development industries.
| Throughput | 800 tests per hour1200 ISE tests per hour |
| Sample Positions | 150 |
| Reagent Positions | 180 |
| Sample Volume | 1 to 70 µl |
| Reagent Volume | 10 to 350 µl |
| Working Temperature | 15 °C to 30 °C |
| Humidity | 40% to 85% |
| Water Consumption | < 25 L/H |
| Cuvettes | 160 reusable cuvettes |
| Optical Length of Cuvettes | 6 mm |
| Light Source | 12V/20W Halogen Lamp |
| Wavelength | 12 wavelengths from 340 to 800 nm |
| Absorbance | 0 to 3.5 Abs |
| Power Supply | 220V 50 Hz |
| Internal Dimensions | 1360 × 795 × 1155 mm |
| External Dimensions | 1729 × 969 × 1435 mm |
| Net Weight | 290 Kg |
| Gross Weight | 400 Kg |
