Air Permeability Tester FM-APR-A100 features a pressure difference range of 1 to 4000 Pa for precise air permeability measurements. The high-precision pressure sensor ensures reliable performance. It has an interchangeable nozzle system that adapts to different requirements. Our tester has monitored processes with real-time data visualization, providing instant feedback and insights.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.

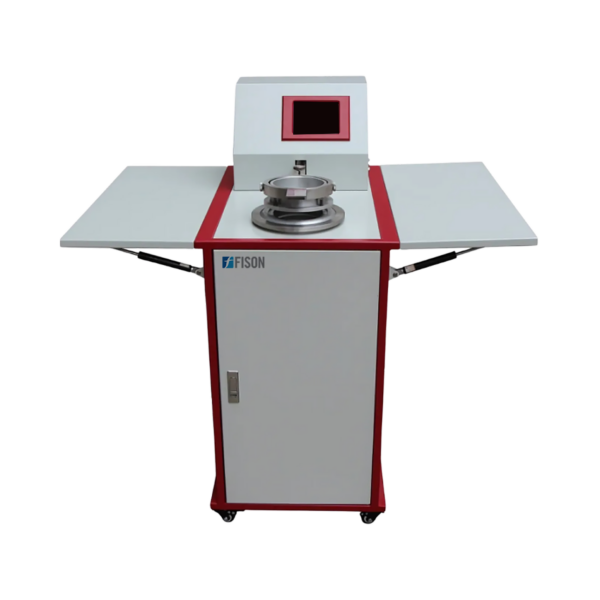

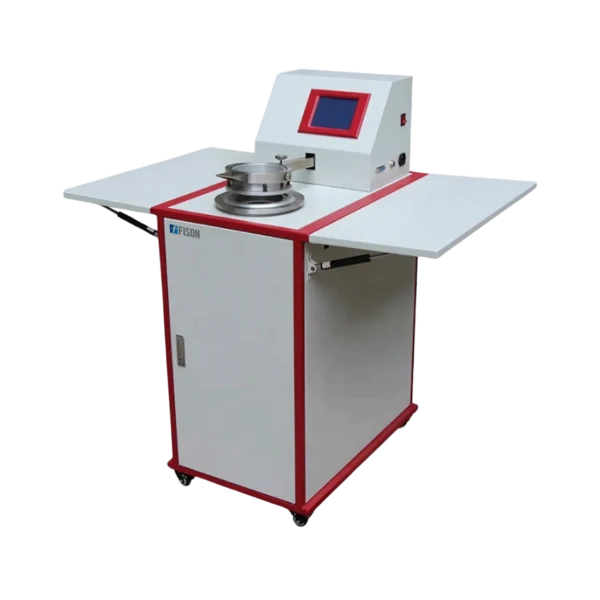

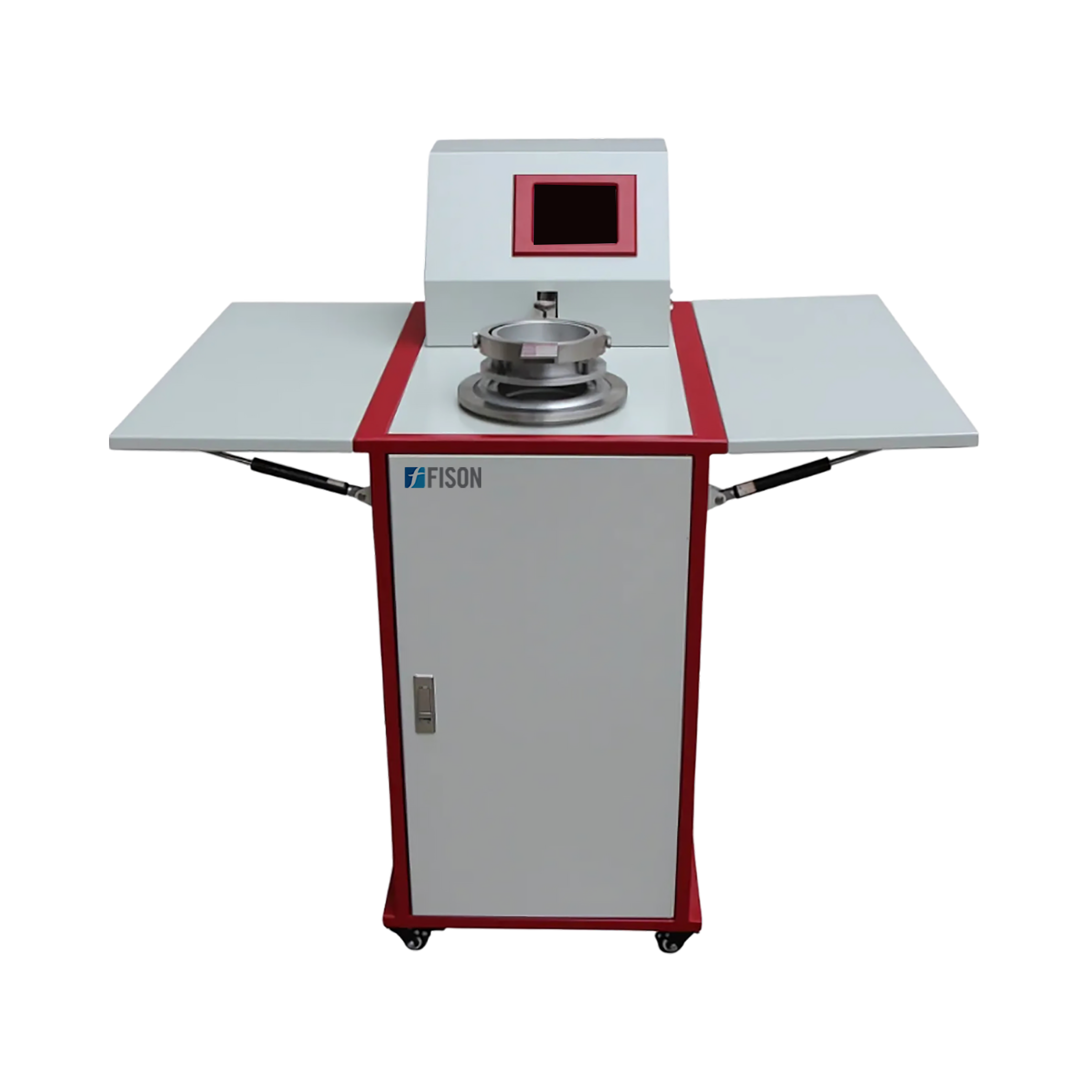

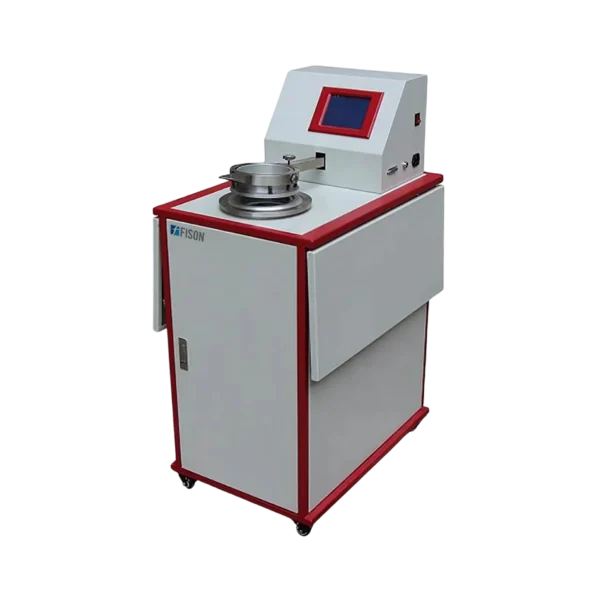

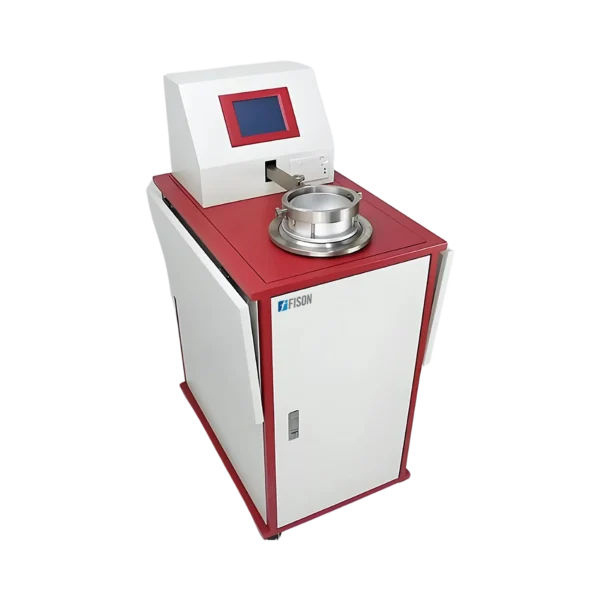

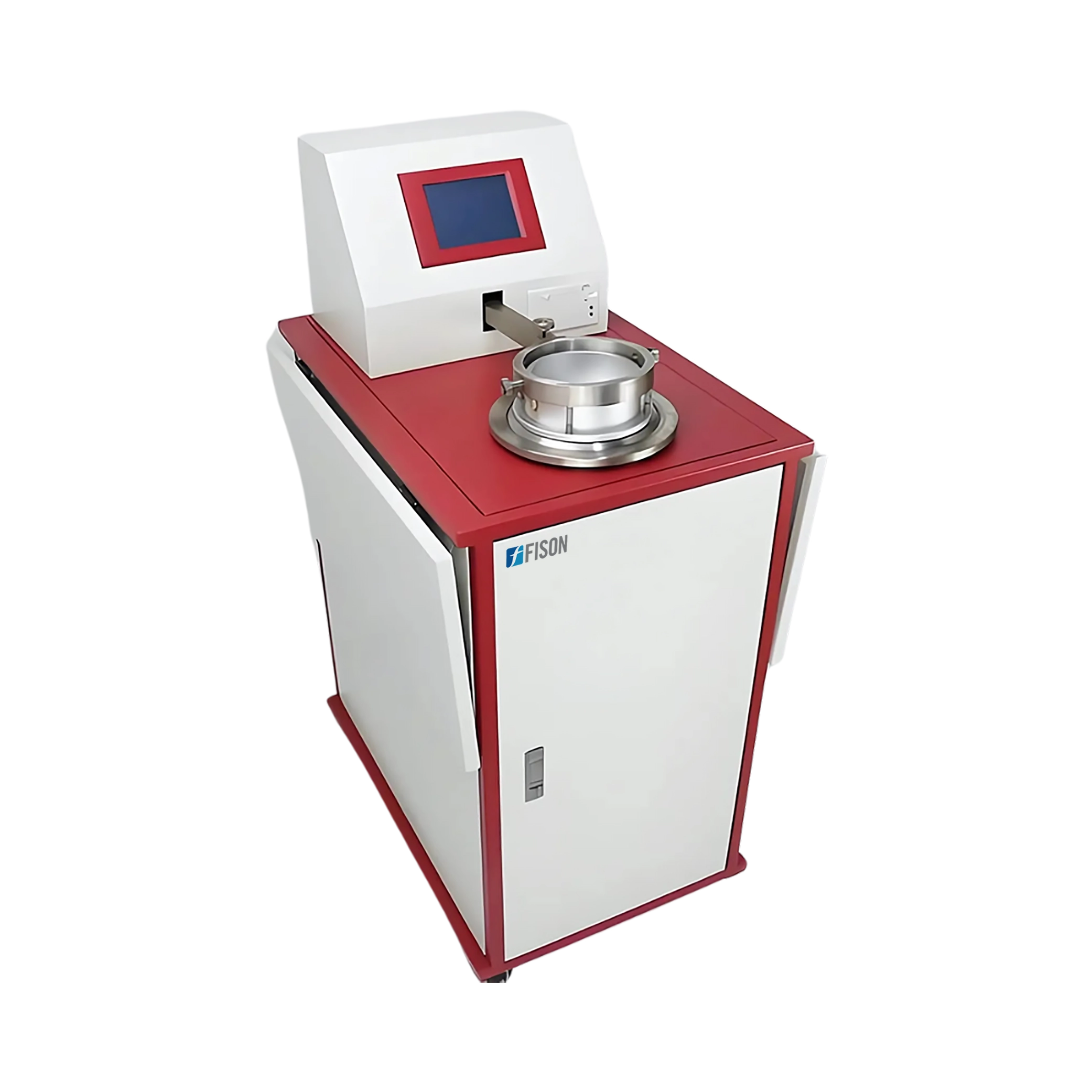

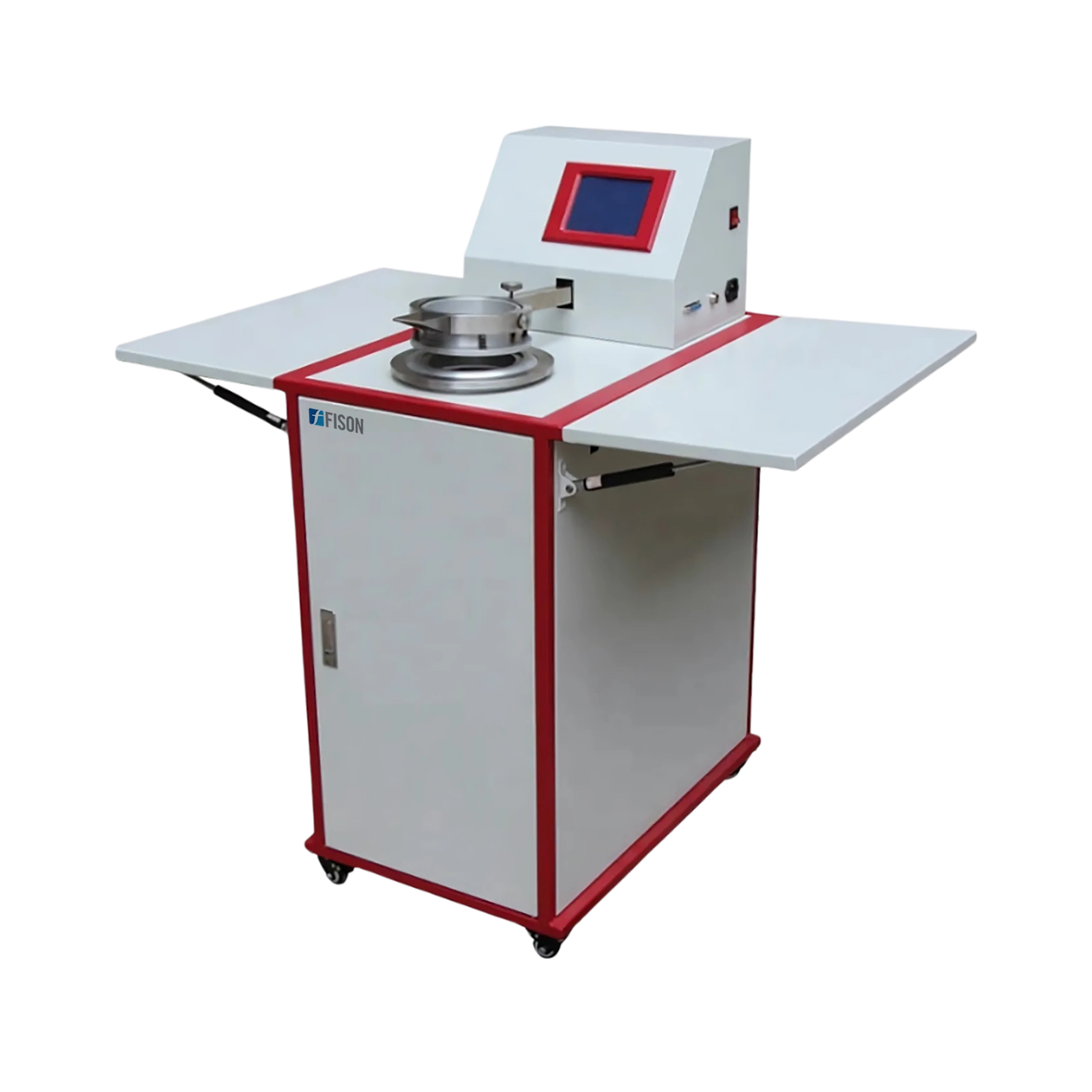

Air Permeability Tester FM-APR-A100 is a precision instrument designed to measure the airflow through various materials such as textiles, paper, and nonwovens, ensuring quality and performance standards. It is used in industries like textiles, filtration, and construction.
| Pressure Difference Range | 1 to 4000 Pa |
| Permeability Range | 0.1 to 12000 mm/s |
| Room Temperature Control Range | 10°C to 35°C |
| Relative Humidity | ≤ 80 % |
| Measuring Error | ≤±2 % |
| Fabric Thickness | ≤12 mm |
| Testing Area | 5 cm², 20 cm², 50 cm², 100 cm² Φ50 mm (≈19.6 cm²), Φ70 mm (≈38.5 cm²) |
| Nozzle Parameters | 11 pcs (Φ 0.8 to Φ 20) |
| Power Supply | AC 220 V 50/60 Hz, 2 kW |
| Dimensions (L × W × H) | 700 × 520 × 1100 mm |
| Packaging Dimensions (L × W × H) | 780 × 580 × 1250 mm |
| Weight | 93 kg |
| Gross Weight | 120 kg |
