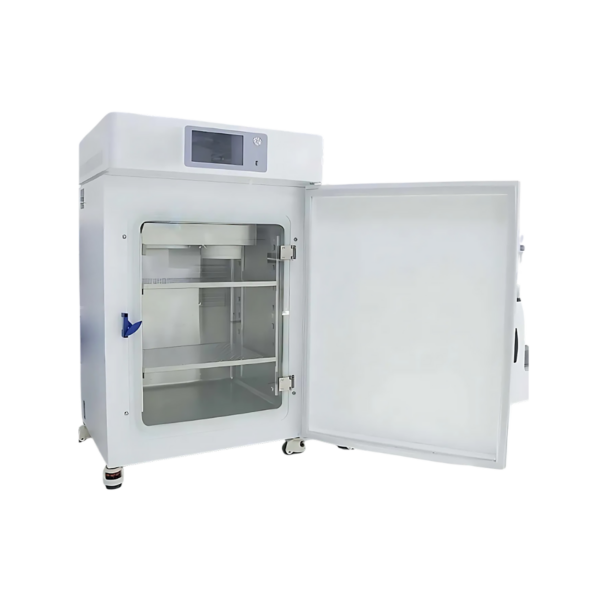

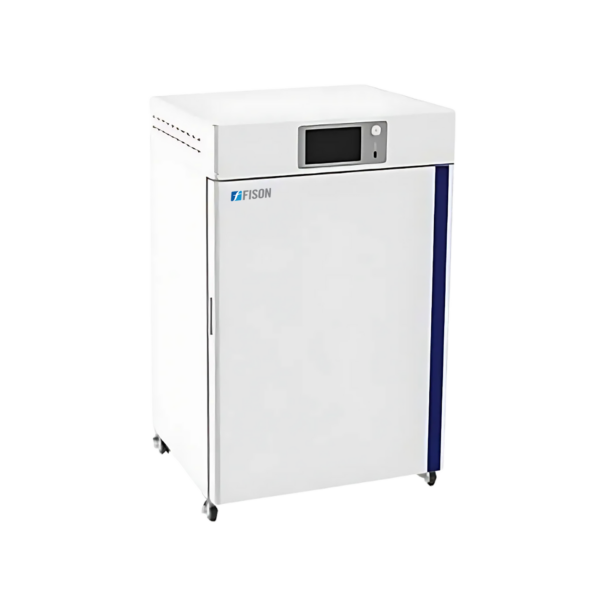

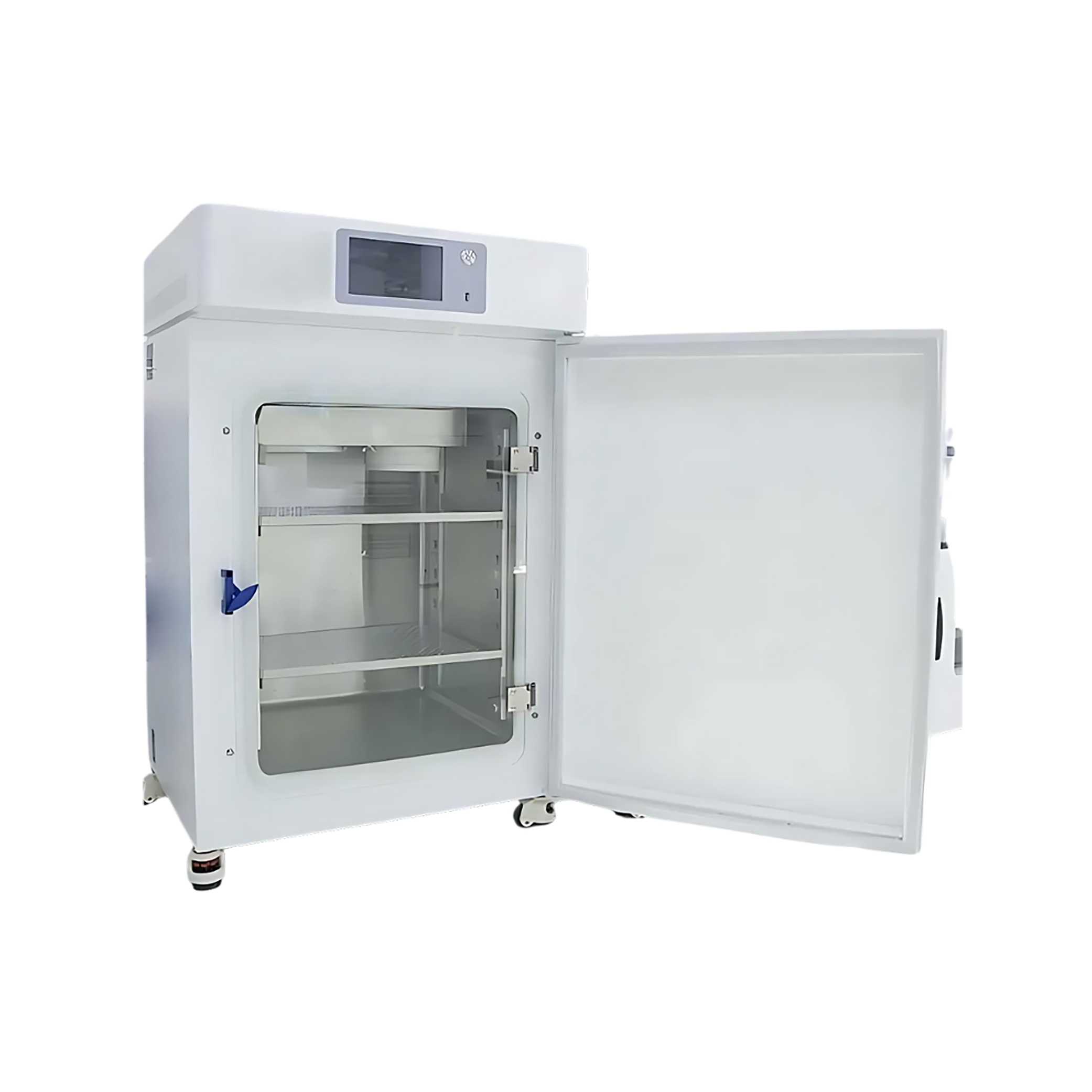

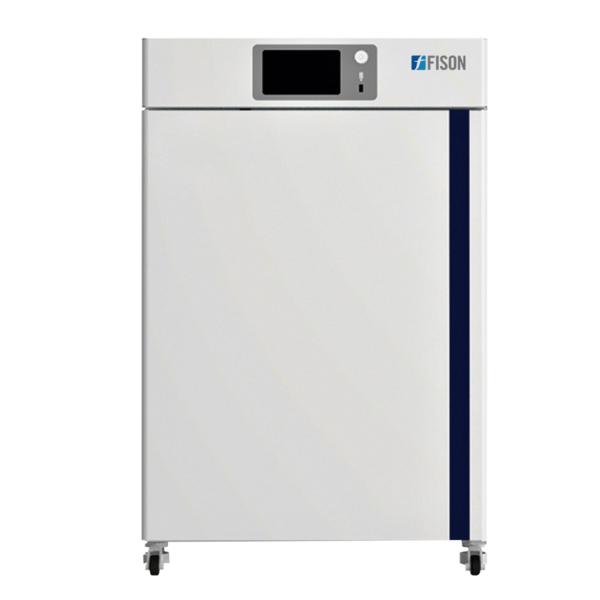

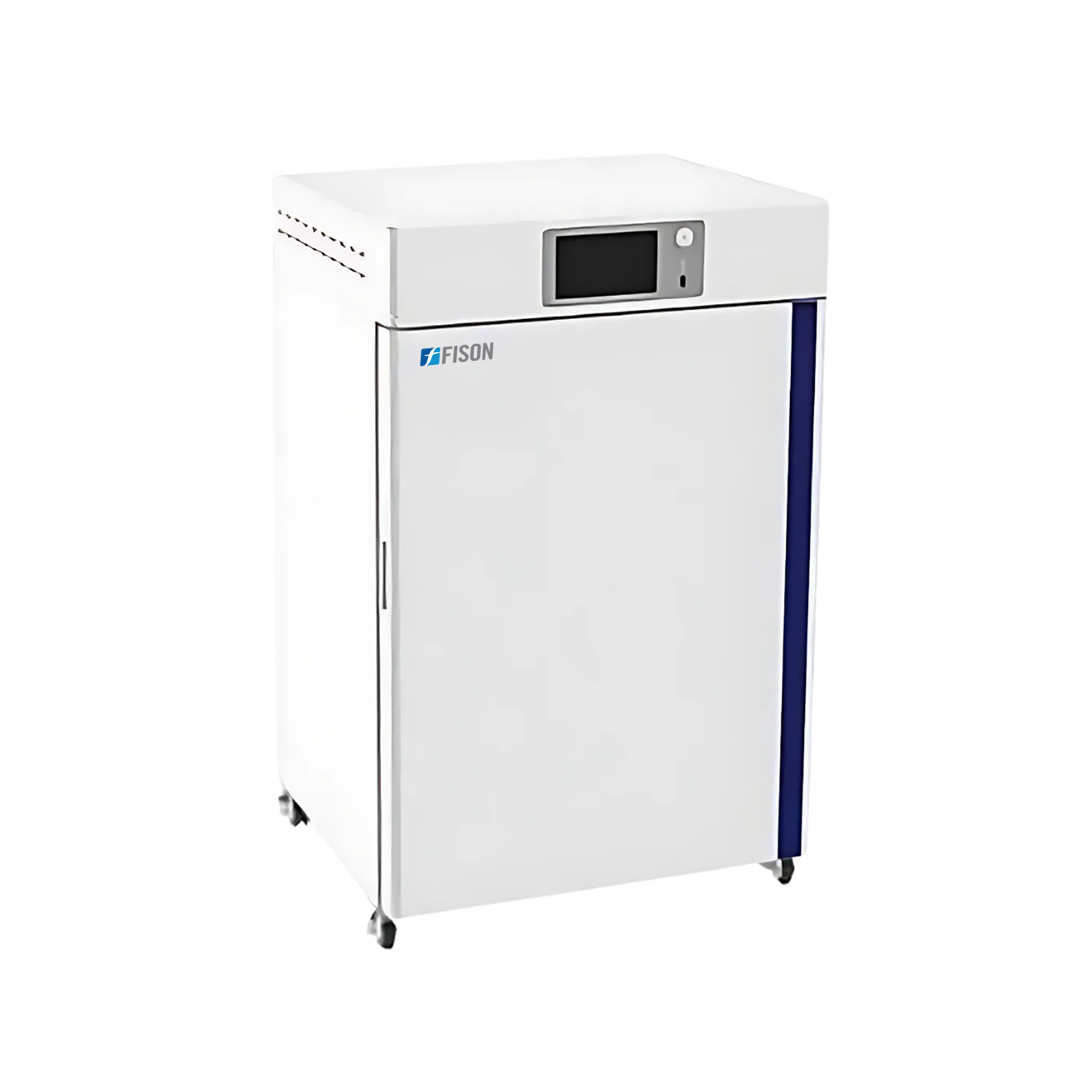

Air Jacketed CO₂ Incubator FM-CIA-A100 employs air-jacketed temperature control technology to ensure an optimal and stable growing environment for cell and tissue cultures. Built-in microprocessor controller technology with LED display and 50 L working chamber capacity. Enhanced safety features include infrared sensor for CO₂ concentration and UV lamp for sterilization, promotes cell growth through precise control of humidity, temperature, and CO₂ gas while minimizing the potential for contamination.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
CO₂ incubators are designed to maintain adequate interior moisture to prevent the drying out of cultures. These air jacketed CO₂ incubators are widely used for a broad range of applications that includes: Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.
| Capacity | 50 L |
| Heating | Air jacket |
| Temperature range | RT&+5&to&60°C |
| Control&type | PID&control |
| Temperature fluctuation | ≤&±0.2°C (at 37°C) |
| Temperature uniformity | ≤&±0.3°C (at 37°C) |
| Time&setting | 999 h&or&continuous |
| Alarm system | Over-temperature alarm;&CO₂ Concentration alarm; Temperature sensor error alarm; Water-shortage alarm. |
| Interior material | Stainless steel |
| Exterior material | Cold-rolled&steel&with&painting |
| Door&type | Double door |
| Insulation Material | Polystyrene&film |
| CO₂&control&sensor | Infrared sensor |
| CO₂ measuring range | 0 to 20 % |
| CO₂ concentration control accuracy | CO₂ concentration control error 5% ± 0.1 % |
| Humidification type | Water tank for natural evaporation |
| Sterilization&type | UV&lamp |

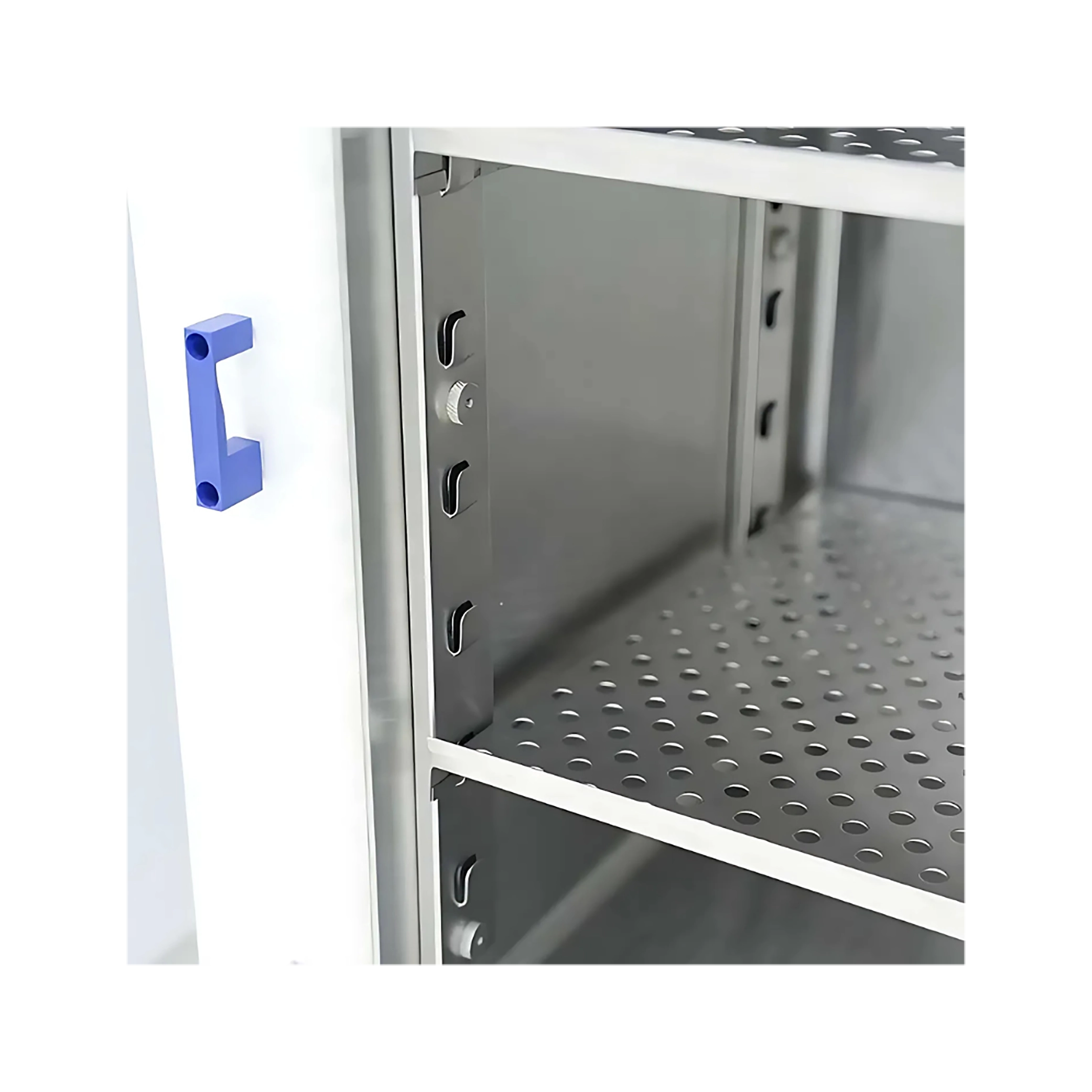

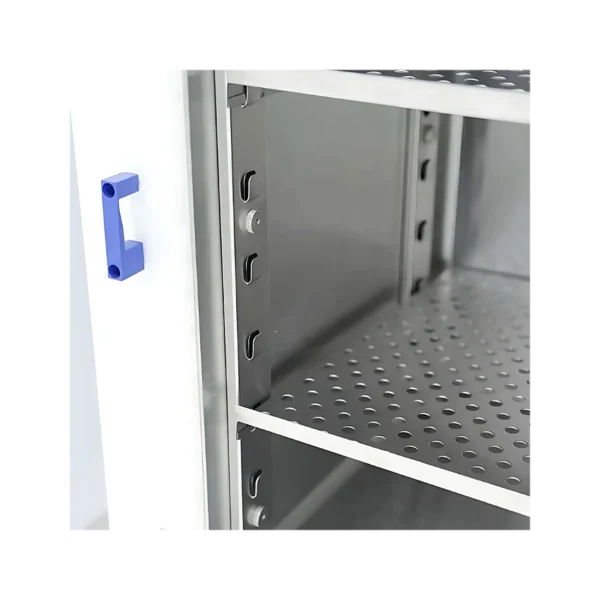

| Shelves | 2 pcs/adjustable |
| Caster type | Foot master caster |
| Interface | USB port |
| Power supply | 220 V±10%，50/60 Hz |
| Maximum power consumption | 350 W |
| Internal dimension (W×D×H)& | 368×387×408 mm |
| External&dimension (W×D×H)& | 500×527×821 mm |
| Packaging dimension (W×D×H) | 655×680×970 mm |
| Gross Weight | 69 kg |
